VISIONETICS INTERNATIONAL
VIGA+
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
2MB |
|

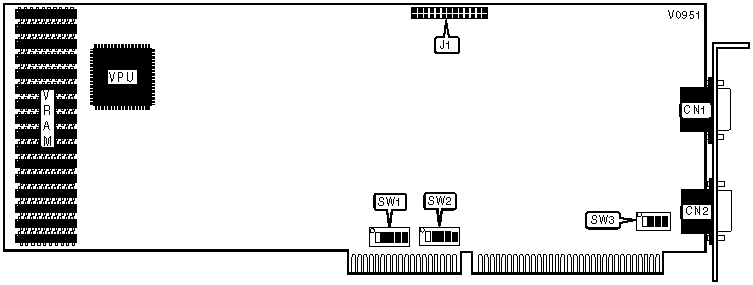

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
J1 |
|
15-pin analog video port |
CN2 |
|
|
|
VIDEO OUTPUT SELECTION |
||||
|
Setting |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
|
H-synch/V-synch |
On |
Off |
On |
Off |
|
S-video |
Off |
On |
Off |
On |
|
INTERRUPT SELECTION |
|||||
|
IRQ |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
|
» |
Disabled |
Off |
Off |
Off |
Off |
|
|
3 |
On |
Off |
Off |
Off |
|
|
7 |
Off |
On |
Off |
Off |
|
|
10 |
Off |
Off |
On |
Off |
|
|
15 |
Off |
Off |
Off |
On |
|
SHARED INTERRUPT SELECTION |
||
|
Setting |
SW2/5 |
|
|
» |
Disabled |
Off |
|
|
Enabled |
On |
|
BASE I/O ADDRESS SELECTION |
||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
|
|
» |
220h |
On |
Off |
On |
|
|
200h |
On |
On |
On |
|
|
210h |
On |
On |
Off |
|
|
230h |
On |
Off |
Off |
|
|
240h |
Off |
On |
On |
|
|
250h |
Off |
On |
Off |
|
|
260h |
Off |
Off |
On |
|
|
270h |
Off |
Off |
Off |
|
BASE I/O ADDRESS MODE SELECTION |
||
|
Mode |
SW1/4 |
|
|
» |
Non - contiguous |
On |
|
|
Contiguous |
Off |
|
FACTORY CONFIGURED - DO NOT ALTER |
|
|
Switch |
Position |
|
SW1/5 |
Off |
