Category

Video

Video Types Supported

XVGA

Video Processor

Tseng Laboratories

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

CONNECTIONS

Purpose

Location

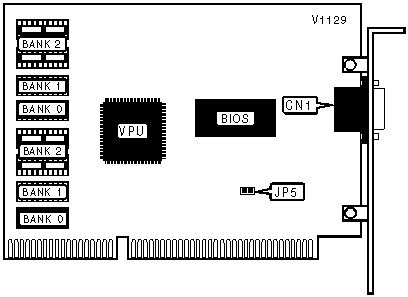

15-pin analog video port

CN1

WAIT STATE SELECTION

Setting

JP5

»

Enabled

Closed

Disabled

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

256KB

(2) 256 x 4

None

None

512KB

(2) 256 x 4

(2) 256 x 4

None

1MB

(2) 256 x 4

(2) 256 x 4

(4) 256 x 4
