Category	Video
Video Types Supported	XVGA
Video Processor	Trident
Highest Resolution Supported	1024x768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1MB

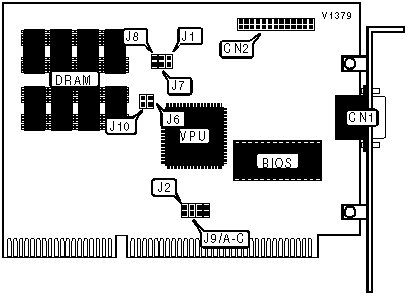

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA Feature Connector	CN2

FIRST STAGE ZERO WAIT STATE
Setting		J2
»	Enabled	Closed
	Disabled	Open

SECOND STAGE ZERO WAIT STATE
Setting		J1
»	Enabled	Open
	Disabled	Closed

SCAN RATE
Rate		J7
»	Normal	Closed
	48.7KHz	Open

BIOS AUTODETECT
Setting		J8
»	Enabled	Open
	Disabled	Closed

BUS TYPE SELECTION
Size		J6	J9/A	J9/B	J9/C	J10
»	16-bit	Open	Open	Open	Open	Closed
	8-bit	Closed	Closed	Closed	Closed	Open

MISCELLANEOUS TECHNICAL NOTE

The Gecko Super VGA card and the VGA come in 256KB, 512KB, and 1MB versions. The size and orientation of memory banks is unidentified.
