CIRRUS 5428 SUPER VGA MASTER VL REV. 2
|
Card Type |
Video card |
|
Video Chip Set |
Cirrus Logic |
|
Highest Resolution Supported |
1024 x 768 |
|
Maximum Video Memory |
2MB |
|
Data Bus |
32-bit VESA Local Bus |
|
Video Types Supported |
XVGA |
|

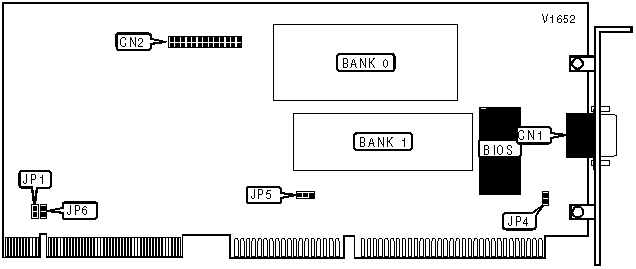

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Green PC connector |
JP1 |
|
Feature connector |
CN2 |
|
|
|
USER CONFIGURABLE SETTINGS |
||
|
Function |
Label |
Position |
|
IRQ9 enabled |
JP4 |
Closed |
|
IRQ9 disabled |
JP4 |
Open |
|
Turbo mode |
JP5 |
Pins 1 & 2 closed |
|
Normal mode |
JP5 |
Pins 2 & 3 closed |
|
Green PC enabled |
JP6 |
Closed |
|
Green PC disabled |
JP6 |
Open |
|
MISCELLANEOUS TECHNICAL NOTES |
Note: The exact size and configuration of the DRAM in Bank 0 and Bank 1 is unidentified. |
