Category	Video
Video Types Supported	XVGA
Video Processor	Western Digital
Highest Resolution Supported	1600 x 1200
Data Bus Type	32-bit PCI
Memory Type	DRAM (EDO)
Maximum Onboard Memory	4MB

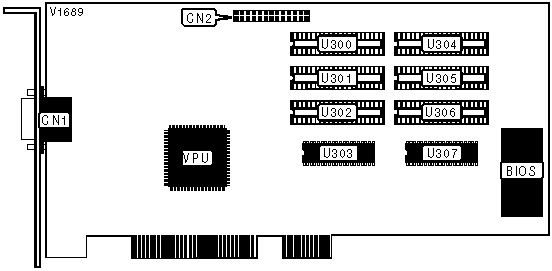

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	Feature connector	CN2

DRAM CONFIGURATION
Size	Bank 0 (U303 & U307)	Bank 1 (U301 & U305)	Bank 2 (U300,U304, U302 & U306)
1MB	(2) 256K x 16	NONE	NONE
2MB	(2) 256K x 16	(2) 256K x 16	NONE
4MB	(2) 256K x 16	(2) 256K x 16	(4) 256K x 16
