Card Type	TV Card
Video Chip Set	Unidentified
Highest Resolution Supported	640 x 480
Maximum Video Memory	None
Data Bus	8-bit ISA
Video Types Supported	XVGA
Video Format Supported	640 x 480 (NTSC), 800 x 600 (PAL)

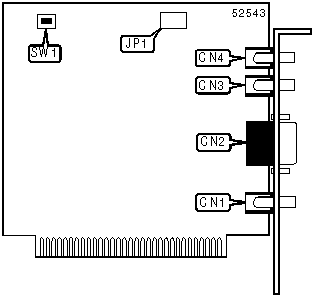

CONNECTIONS
Function	Label	Function	Label
VGA in/out	CN1	AV in	CN4
15-pin analog video connector	CN2	Brightness control	SW1
SVHS in	CN3	Horizontal noise adjustment	JP1
