WESTERN DIGITAL CORPORATION
PARADISE AUTOSWITCH EGA 480
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Highest Resolution Supported |
640 x 480 |
|
Maximum Video Memory |
256KB DRAM (location unidentified) |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
EGA/CGA |
|

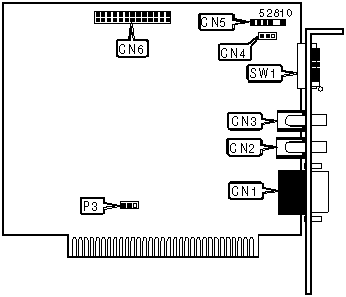

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
9-pin analog video connector |
CN1 |
Light pen connector |
CN5 |
|
RCA connector |
CN2 |
Feature connector |
CN6 |
|
RCA connector |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
CN4 |
Pins 2 & 3 closed |
| » |
Factory configured - do not alter |
P3 |
Pins 1 & 2 closed |
|
DISPLAY SELECTION (SINGLE MONITOR SYSTEMS) | |||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/6 |
|
Monochrome |
Off |
Off |
On |
Off |
Off |
|
40 column |
On |
Off |
Off |
On |
Off |
|
80 column |
Off |
Off |
Off |
On |
Off |
|
200 column |
On |
On |
On |
Off |
Off |
|
350 column |
Off |
On |
On |
Off |
Off |
|
Note: SW1/5 On enables AutoSwitch, Off disables AutoSwitch. | |||||
|
PRIMARY DISPLAY SELECTION (TWO MONITOR SYSTEMS) | ||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
40 column |
On |
Off |
Off |
On |
Off |
Off |
|
80 column |
Off |
Off |
Off |
On |
Off |
Off |
|
200 column |
On |
On |
On |
Off |
Off |
Off |
|
350 column |
Off |
On |
On |
Off |
Off |
Off |
|
DISPLAY SELECTION (AUTO SWITCH) | ||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
40 column |
On |
On |
On |
On |
Off |
Off |
|
80 column |
Off |
On |
On |
On |
Off |
Off |
|
200 column |
On |
Off |
On |
On |
Off |
Off |
|
350 column |
Off |
Off |
On |
On |
Off |
Off |
