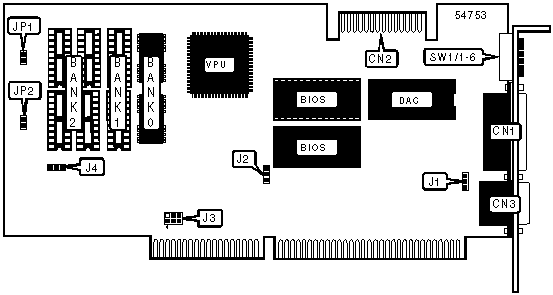

UNIDENTIFIED
TVGA 8902/4/8-DRAM
|
 Card Type  |
 Video Card  |
|
 Video Chip Set  |
 Unidentified  |
|
 Maximum Video Memory  |
 1MB DRAM  |
|
 Video Types Supported  |
 VGA  |
|
 Highest Resolution Supported  |
 1024 x 768  |
|
 Data Bus  |
 16-bit ISA  |

|
 CONNECTIONS  |
|||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 15-pin analog video port  |
 CN1  |
 9-pin TTL Port  |
 CN3  |
|
 Feature connector (VGA/VESA)  |
 CN2  |

  |

  |
|
 USER CONFIGURABLE SETTINGS  |
|||
|
 Function  |
 Label  |
 Position  |
|
|
 »  |
 Unidentified  |
 SW1/4  |
 On  |
|
 BUS SIZE DETECTION  |
||
|
 Setting  |
 J2  |
|
|
 »  |
 Autodetect  |
 Pins 2 & 3 Closed  |
|

  |
 Standard Interface  |
 Pins 1 & 2 Closed  |
|
 Note: Orientation of J2 may vary. Check pin numbers on card.  |
||
|
 BUS SIZE SELECTION  |
||
|
 Setting  |
 SW1/6  |
|
|
 »  |
 16-bit  |
 Off  |
|

  |
 8-bit  |
 On  |
|
 SCAN RATE SELECTION  |
||
|
 Rate  |
 SW1/3  |
|
|
 »  |
 Less than 48Mhz  |
 On  |
|

  |
 48-49Mhz  |
 Off  |
|
 MONITOR SELECT  |
||
|
 Setting  |
 SW1/1  |
 SW1/2  |
|
 VGA  |
 On  |
 On  |
|
 EGA  |
 Off  |
 On  |
|
 CGA  |
 On  |
 Off  |
|
 MDA/Hercules  |
 Off  |
 Off  |
|
 Note: SW1/1 & 2 affects 9-pin TTL connection. Not present on all cards.  |
||
|
 INTERRUPT  |
||
|
 IRQ 9  |
 J1  |
|
|
 »  |
 Disabled  |
 Pins 2 & 3 Closed  |
|

  |
 Enabled  |
 Pins 1 & 2 Closed  |
|
 ADDRESS DECODE  |
||
|
 Setting  |
 SW1/5  |
|
|
 »  |
 Fast address decode  |
 Off  |
|

  |
 Slow address decode  |
 On  |
|
 DRAM CONFIGURATION  |
|||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
|
 256KB  |
 (2) 128KB x 4  |
 None  |
 None  |
|
 512KB  |
 (2) 128KB x 4  |
 (2) 128KB x 4  |
 None  |
|
 1MB  |
 (2) 128KB x 4  |
 (2) 128KB x 4  |
 (4) 128KB x 4  |
|
 VIDEO MEMORY JUMPER CONFIGURATION  |
|||
|
 Size  |
 JP1  |
 JP2  |
 J3  |
|
 256KB  |
 Open  |
 Closed  |
 Pins 1 & 2, 4 & 5 closed  |
|
 512KB  |
 Open  |
 Closed  |
 Pins 1 & 4, 2 & 5 closed  |
|
 1MB  |
 Closed  |
 Open  |
 Pins 2 &3, 5 & 6 closed  |
|
 Note: JP1 &2 are jumper blocks, number of pins unidentified. Not present on all cards. Orientation of J3 may vary.  |
|||
|
 CLOCK SPEED  |
||
|
 Setting  |
 J4  |
|
|
 »  |
 40Mhz(2 DRAM)  |
 Pins 2 & 3 closed  |
|

  |
 48Mhz(4/8 DRAM)  |
 Pins 1 & 2 closed  |
|
 Note: Exact location of J4 unidentified. Not present on all cards  |
||
