Terminal Concentrator

SPARCcluster 1 / SPARCcluster PDB
Sun StorEdge 3900 / 6900 Series
Options 1310 / 1311 / 1312

370-1434 370-4934
without preconfigured software with preconfigured software for use with StorEdge 3900/6900

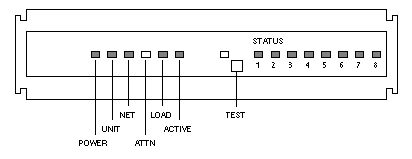

Front View

Rear View

Notes

  1. The SPARCcluster 1 minimum operating system is Solaris 2.2.
  2. The console workstation minimum operating system is Solaris 2.2.
  3. The Ethernet Address is 00:80:2d:xx:xx:xx.
  4. The 10BASE-T Ethernet port is on the 370-1434-02.
  5. The "break fix" (removal of a +300-400mv transient on the RS232 driver during power up) is installed on the 370-1434-02.
  6. Option X1310A is the Terminal Concentrator and Serial Cable 530-2151.
  7. Option X1311A is mounting hardware for the Terminal Concentrator.
  8. Option X1312A is the Terminal Concentrator and Serial Cable 530-2152.

References

  1. SPARCcluster 1 System Installation Manual, 801-3964.
  2. SPARCcluster 1 System Service Manual, 801-5015.
