Fuji 300-1258
2410 Watt Power Supply
SPARCcenter 2000 / SPARCcenter2000E

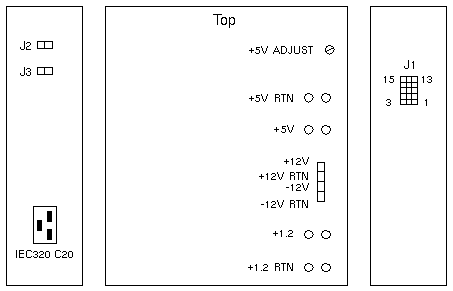

| 300-1258 |
| AC Input Power Supply |
J1
| PIN |
COLOR |
VOLTAGE |
| 1 |
Black |
PF+ |
| 2 |
Red |
PF- |
| 3 |
N/C |
None |
| 4 |
Orange |
+24 |
| 5 |
Or/Blk |
None |
| 6 |
White |
+24 Rtn |
| 7 |
Green |
Remote+ |
| 8 |
Gr/Blk |
None |
|
|
| PIN |
COLOR |
VOLTAGE |
| 9 |
Blue |
Remote- |
| 10 |
Blk/Wht |
5 +Sense |
| 11 |
Rd/Wht |
5 -Sense |
| 12 |
Gr/Wht |
5 Margin |
| 13 |
Blu/Wht |
1.2 +Sense |
| 14 |
Wht/Blk |
1.2 -Sense |
| 15 |
Rd/Blk |
1.2 Margin |
|
J2 and J3
| PIN |
COLOR |
VOLTAGE |
| J2-1 |
Orange |
+24 |
| J2-2 |
Black |
+24 Rtn |
| J3-1 |
Red |
+24 |
| J3-2 |
Black |
+24 Rtn |
DC Output
| +5V |
+1.2V |
+12V |
-12V |
+24V |
| 340A |
180A |
14A |
2A |
9A |
Notes
- Only one 300-1258 is supported. The 300-1258 Power Supply was not used in
factory configured SC2000E systems.
- Power Supply 300-1258, installed in systems manufactured from June to
September 1994, requires DC Adapter Harness 530-2171 when Exabyte 10GB and 14GB
8 mm Tape Drives are installed.
|
