Tyco A157
560 Watt Power Supply

Sun Fire V480

300-1480
Type A157
AC Input Power Supply

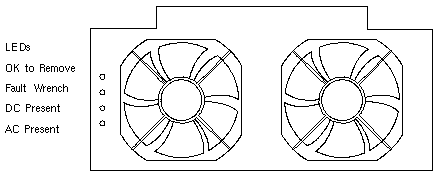

Front View

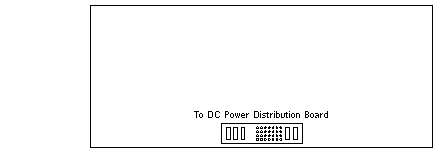

Rear View

AC Input

120 / 200-240V 47-63Hz 12-8A TUV/UL/CSA
100V 47-63Hz 15A Japan
Nominal Voltage Range 100-240V
Operating Range 90-264Vrms 47-63Hz

DC Output

+48V +5.1V
24.5A 1.5A

Sun Fire V480 Codename: Cherrystone

Notes

  1. The Power Supply is labeled 100V, 47-63Hz, 15A Japan.
  2. The Power Supply is labeled 120/200-240V, 47-63Hz, 12/8A.
  3. The V480 Chassis is labeled 100-240V, 50-60Hz, 10-5A.
