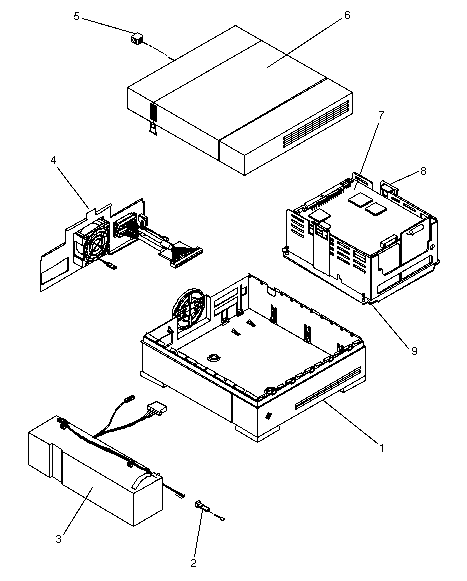

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2139 |
Base Assembly, Disk Drive Option |
| 2 |
530-1522 |
Power Indicator LED Cable |
| 3 |
300-1080 |
60 Watt Power Supply |
4
-
-
-
-
-
-
-
-
-
-
-
-
-
- |
540-2145
150-1557
150-2049
340-2506
501-1468
530-1790
530-2117
530-1844
530-1844
530-1844
530-1844
530-1844
530-2125
540-2142
540-2142 |
I/O Bracket Assembly
 Address Select Switch (obsolete)
Address Select Switch
I/O Bracket
I/O PCB and Cable Assembly (obsolete)
Address Select Switch Cable (obsolete)
Address Select Switch Cable
Internal SCSI Cable, -01 Rev 50 = 300 mm
Internal SCSI Cable, -01 Rev 51 = 250 mm
Internal SCSI Cable, -02 Rev 50 = 240 mm
Internal SCSI Cable, -03 Rev 50 = 240 mm
Internal SCSI Cable, -03 Rev A = 260 mm
Internal SCSI Cable, 308 mm
DC Fan Assembly, 17 CFM (obsolete)
DC Fan Assembly, 14 CFM |
| 5 |
540-1982 |
Top Cover Lockbox Assembly |
| 6 |
540-2141 |
Top Cover Assembly, Disk Drive Option |
| 7 |
370-1377 |
1.3GB Disk Drive, Seagate 976002-012, PA4E1 |
| 8 |
340-2571 |
Peripheral Removal Handle (obsolete) |
| 8 |
540-2263 |
Peripheral Removal Handle |
| 9 |
340-2507 |
Disk Drive Mounting Bracket |
| NS |
150-1785 |
Single-Ended Active Terminator, HD50 |
| NS |
240-1141 |
#6-32 × 1/4" Disk Drive Mounting Screw |
| NS |
240-1912 |
#6-32 × 1/4" Disk Drive Mounting Screw (obs) |
| NS |
530-1792 |
External SCSI Cable, HD50 to DD-50SA, 2.0M |
| NS |
530-1793 |
External SCSI Cable, HD50 to HD50, 80 cm |
| NS |
530-1829 |
External SCSI Cable, HD50 to DD-50SA, 1.0M |
| NS |
530-1836 |
External SCSI Cable, HD50 to HD50, 2.0M |
| NS |
530-1852 |
External SCSI Cable, HD50 to HD50, 4.0M |
|
800-6219
800-7236 |
Desktop Storage Module Service Manual
Desktop Storage Module Service Manual |
