StorEdge 10X DVD-ROM

A23 / A25 / A26 / A27 / A28 / A29 / A33 / A34 / A35
E3500 / E4500 / E5500 / E6500
Netra t 1120/1125 / Netra t 1400/1405
Netra 20 / Netra ct 800 / StorEdge D240
Sun Fire V880 / Sun Fire 12K / Sun Fire 15K

Options 5883 / 6168

390-0025 540-4684 595-5473
Toshiba SD-M1401
1 5/8" Height
Medium Grey Bezel		 Netra ct 800 FRU D240 FRU
Assembly 599-2396

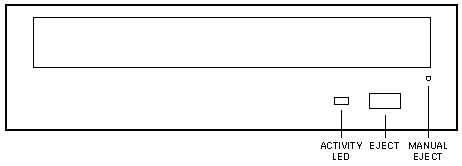

Front View

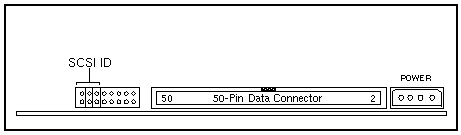

Rear View

SCSI ID Jumper Setting

Set the jumpers to SCSI target ID 6 by installing jumpers ID4 and ID2:

Notes

  1. The minimum CD-ROM mode operating system is Solaris 2.5.1.
  2. The minimum DVD-ROM mode operating system is Solaris 8.

Reference

Installation and User's Guide, 806-5518.
