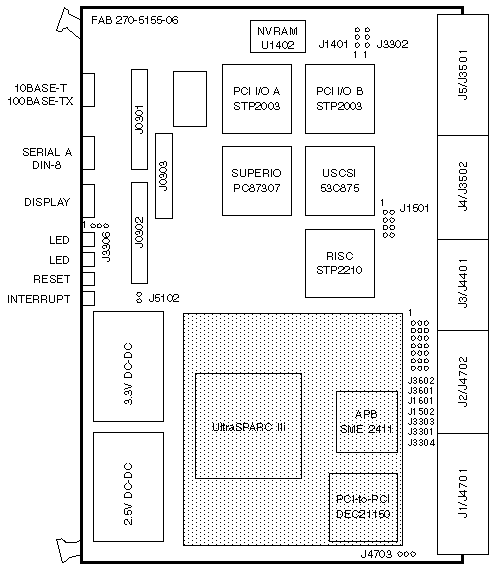

SPARCengine CP1500

Codename: Nordica
501-5155 595-5040
270MHz 256KB
0MB
w Front Panel
270-5155-06		 270MHz 256KB
128MB
w/o Front Panel

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1401 1-2
2-3		 Out
In		 FPROM write protect
FPROM write enable
J1501 1-8 Out JTAG scan connector
J1502 1-2
2-3		 Out
Out		 External clock
Scan clock
J1601 1-2
2-3		 Out
Out		 PCI clock 66/33
PCI clock 33/66
J3301 1-2
2-3		 Out
Out		 Disable loopback reset
Enable loopback reset
J3302 1-2
2-3		 Out
Out		 Disable user flash write
Enable user flash write
J3303 1-2
2-3		 In
Out		 Boot from FPROM
Boot from ROMBO
J3304 1-2
2-3		 Out
In		 Disable Boot from user flash
Enable Boot from user flash
J3306 2-3 In 7-segment LED display bias
J3601 1-3 Out Header for I2C EEPROM module
J3602 1-3 Out Header for I2C EEPROM module
J4703 1-2
2-3		 Out
Out		 PLD TDO
cPCI TDO
J5102 1-2 Out Thermal diode

Notes

  1. NVRAM 100-5892 is soldered to the CP1500.
  2. The NVRAM uses M4T28 SNAPHAT battery 100-5893.
  3. The SPARCengine CP1500 does not have a system serial number.

References

  1. SPARCengine CP1500 Technical Reference Manual, 806-2104.
  2. SPARCengine CP Memory Installation and Configuration, 806-3690.

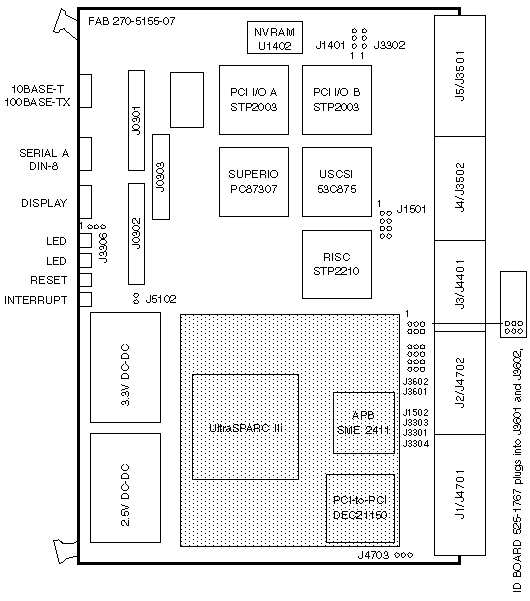

SPARCengine CP1500

Codename: Nordica
501-5385 595-5094
270MHz 256KB
0MB FRU
w Front Panel
270-5155-07		 270MHz 256KB
128MB
w/o Front Panel

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1401 1-2
2-3		 Out
In		 FPROM write protect
FPROM write enable
J1501 1-8 Out JTAG scan connector
J1502 1-2
2-3		 Out
Out		 External clock
Scan clock
J1601 1-3 N/A Not stuffed
J3301 1-2
2-3		 Out
Out		 Disable loopback reset
Enable loopback reset
J3302 1-2
2-3		 Out
Out		 Disable user flash write
Enable user flash write
J3303 1-2
2-3		 In
Out		 Boot from FPROM
Boot from ROMBO
J3304 1-2
2-3		 Out
In		 Disable Boot from user flash
Enable Boot from user flash
J3306 2-3 In 7-segment LED display bias
J3601 1-3 Out Header for I2C EEPROM module
J3602 1-3 Out Header for I2C EEPROM module
J4703 1-2
2-3		 Out
Out		 PLD TDO
cPCI TDO
J5102 1-2 Out Thermal diode

Notes

  1. NVRAM 100-5892 is soldered to the CP1500.
  2. The NVRAM uses M4T28 SNAPHAT battery 100-5893.
  3. The CP1500 uses SEEPROM 525-1767.
  4. The SPARCengine CP1500 does not have a system serial number.

References

  1. SPARCengine CP1500 Technical Reference Manual, 806-2104.
  2. SPARCengine CP Memory Installation and Configuration, 806-3690.

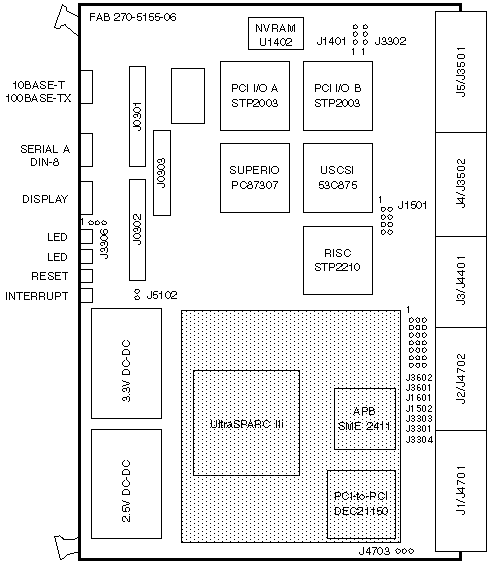

SPARCengine CP1500

Codename: Nordica
501-5230 595-5039
333MHz
0MB FRU
w Front Panel
270-5155-06		 333MHz
128MB
w/o Front Panel
501-5230

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1401 1-2
2-3		 Out
In		 FPROM write protect
FPROM write enable
J1501 1-8 Out JTAG scan connector
J1502 1-2
2-3		 Out
Out		 External clock
Scan clock
J1601 1-2
2-3		 Out
Out		 PCI clock 66/33
PCI clock 33/66
J3301 1-2
2-3		 Out
Out		 Disable loopback reset
Enable loopback reset
J3302 1-2
2-3		 Out
Out		 Disable user flash write
Enable user flash write
J3303 1-2
2-3		 In
Out		 Boot from FPROM
Boot from ROMBO
J3304 1-2
2-3		 Out
In		 Disable Boot from user flash
Enable Boot from user flash
J3306 2-3 In 7-segment LED display bias
J3601 1-3 Out Header for I2C EEPROM module
J3602 1-3 Out Header for I2C EEPROM module
J4703 1-2
2-3		 Out
Out		 PLD TDO
cPCI TDO
J5102 1-2 Out Thermal diode

Notes

  1. NVRAM 100-5892 is soldered to the CP1500.
  2. The NVRAM uses M4T28 SNAPHAT battery 100-5893.
  3. The SPARCengine CP1500 does not have a system serial number.

References

  1. SPARCengine CP1500 Technical Reference Manual, 806-2104.
  2. SPARCengine CP Memory Installation and Configuration, 806-3690.


SPARCengine CP1500

Codename: Nordica
501-5383 595-5092
333MHz
0MB FRU
w Front Panel
270-5155-07		 333MHz
128MB
w/o Front Panel
501-5383

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1401 1-2
2-3		 Out
In		 FPROM write protect
FPROM write enable
J1501 1-8 Out JTAG scan connector
J1502 1-2
2-3		 Out
Out		 External clock
Scan clock
J1601 1-3 N/A Not stuffed
J3301 1-2
2-3		 Out
Out		 Disable loopback reset
Enable loopback reset
J3302 1-2
2-3		 Out
Out		 Disable user flash write
Enable user flash write
J3303 1-2
2-3		 In
Out		 Boot from FPROM
Boot from ROMBO
J3304 1-2
2-3		 Out
In		 Disable Boot from user flash
Enable Boot from user flash
J3306 2-3 In 7-segment LED display bias
J3601 1-3 Out Header for I2C EEPROM module
J3602 1-3 Out Header for I2C EEPROM module
J4703 1-2
2-3		 Out
Out		 PLD TDO
cPCI TDO
J5102 1-2 Out Thermal diode

Notes

  1. NVRAM 100-5892 is soldered to the CP1500.
  2. The NVRAM uses M4T28 SNAPHAT battery 100-5893.
  3. The CP1500 uses SEEPROM 525-1767.
  4. The SPARCengine CP1500 does not have a system serial number.

References

  1. SPARCengine CP1500 Technical Reference Manual, 806-2104.
  2. SPARCengine CP Memory Installation and Configuration, 806-3690.


SPARCengine CP1500

Codename: Nordica Red

Netra t1 / SPARCengine CP1500

501-5472 501-5577 501-5640
360MHz
0MB FRU
w Front Panel		 360MHz
0MB
w/o Front Panel
Used in Netra t1		 360MHz
128MB FRU
w Front Panel
595-5254 595-5329
360MHz
0MB 501-5577
w/o Front Panel
Used in Netra t1		 360MHz
128MB FRU
w Front Panel
w 501-5640

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1001 1-2
2-3		 In
In		 Enable active SCSI terminator (default)
Disable active SCSI terminator
J1002 1-2
2-3		 In
In		 Enable SCSI terminator power (default)
Disable SCSI terminator power
J1401 1-2
2-3		 In
In		 FPROM write protect
FPROM write enable (default)
J1501 1-8 Out JTAG scan connector
J1502 1-2
2-3		 In
In		 External clock (default)
Scan clock
J3301 1-2
2-3		 In
In		 Disable loopback reset
Enable loopback reset (default)
J3302 1-2
2-3		 In
In		 Disable user flash write
Enable user flash write (default)
J3303 1-2
2-3		 In
In		 System flash access by ROMBO
System flash access by J3304 (default)
J3304 1-2
2-3		 In
In		 Boot from user flash0
Boot from system flash (default)
J3306 2-3 In 7-segment LED display bias
J3401 1-3 Out Header for I2C EEPROM module
J3601 1-3 Out Header for I2C EEPROM module
J3602 1-3 Out Header for I2C EEPROM module
J4703 1-2
2-3		 Out
Out		 PLD TDO
cPCI TDO
J5102 1-2 Out Thermal diode

Notes

  1. The minimum SPARCengine CP1500 OS is Solaris 2.6 HW 5/98.
  2. The minimum Netra t1 Model 100/105 OS is Solaris 2.6 HW 5/98.

References

  1. Netra ct Server Service Manual, 806-3296.
  2. SPARCengine CP1500 Technical Reference Manual, 806-2104.
  3. SPARCengine CP Memory Installation and Configuration, 806-3690.

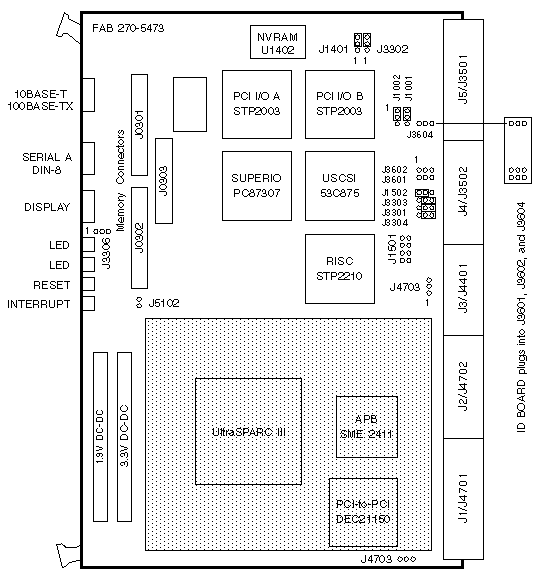

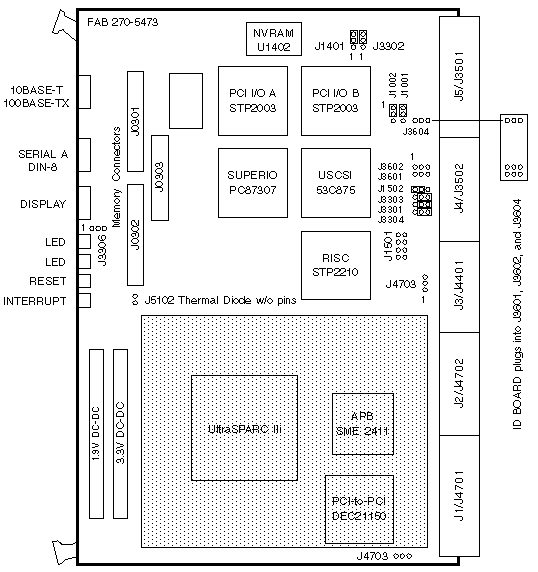

SPARCengine CP1500

Codename: Nordica Red

Netra t1 / Netra ct400 / Netra ct800 / SPARCengine CP1500

501-5473 501-5578 501-5580 501-5731
440MHz 500-5654
0MB FRU
w Front Panel
CP1500		 440MHz 500-5473
0MB
w/o Front Panel
Netra t1		 440MHz 500-5473
256MB FRU
w/o Front Panel
CP1500		 440MHz 500-5654
0MB FRU
w Front Panel
Netra ct400/800
501-5795 501-5796 501-5800 501-5826
440MHz 501-5731
128MB
w Front Panel
Netra ct400/800		 440MHz 501-5731
512MB
w Front Panel
Netra ct400/800		 440MHz 501-5731
1GB
w Front Panel
Netra ct400/800		 440MHz 501-5654
512MB
w/o Front Panel
CP1500
501-6054 501-6055 595-5256 595-5530
440MHz 500-5654
256MB SDRAM
w/o Front Panel
CP1500		 440MHz 500-5654
512MB SDRAM FRU
w/o Front Panel
CP1500		 440MHz 501-5580
256MB OEM FRU
w/o Front Panel
CP1500		 440MHz 501-5826
512MB OEM FRU
w/o Front Panel
CP1500

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1001 1-2
2-3		 In
In		 Enable active SCSI terminator (default)
Disable active SCSI terminator
J1002 1-2
2-3		 In
In		 Enable SCSI terminator power (default)
Disable SCSI terminator power
J1401 1-2
2-3		 In
In		 FPROM write protect
FPROM write enable (default)
J1501 1-8 Out JTAG scan connector
J1502 1-2
2-3		 In
In		 External clock (default)
Scan clock
J3301 1-2
2-3		 In
In		 Disable loopback reset
Enable loopback reset (default)
J3302 1-2
2-3		 In
In		 Disable user flash write
Enable user flash write (default)
J3303 1-2
2-3		 In
In		 System flash access by ROMBO
System flash access by J3304 (default)
J3304 1-2
2-3		 In
In		 Boot from user flash0
Boot from system flash (default)
J3306 2-3 In 7-segment LED display bias
J3401 1-3 Out Header for I2C EEPROM module
J3601 1-3 Out Header for I2C EEPROM module
J3602 1-3 Out Header for I2C EEPROM module
J4703 1-2
2-3		 Out
Out		 PLD TDO
cPCI TDO
J5102 1-2 Out Thermal diode - pins are not installed

Notes

  1. The minimum CP1500 and Netra t1 OS is Solaris 2.6 HW 5/98.
  2. The Operating Environment Installation CD is required to install Solaris 2.6 HW: 5/98.
  3. The minimum Netra ct 400 and ct 800 OS is Solaris 8 HW: 6/00.
  4. The Sun Fire 12K / 15K System Controller uses 501-5473 with different OBP.
  5. Flash update 501-5473 for use as the Sun Fire 12K / 15K System Controller.
  6. The 501-6064 and 501-6055 include EDO SDRAM Memory.

References

  1. Netra ct Server Service Manual, 806-3296.
  2. SPARCengine CP1500 Technical Reference Manual, 806-2104.
  3. SPARCengine CP Memory Installation and Configuration, 806-3690.
