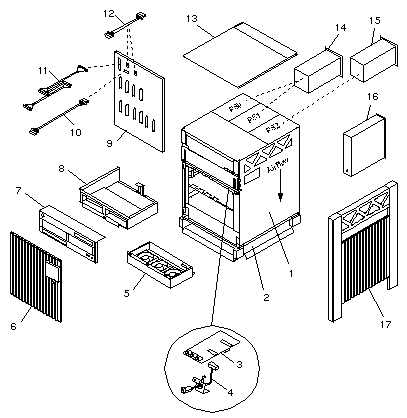

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2755 |
Chassis Assembly |
2
- |
540-2783
240-1806 |
Base Assembly
 Caster |
| 3 |
501-2599 |
LED PCB |
| 4 |
530-2148 |
Keyswitch Assembly |
| 5 |
540-2756 |
3-Fan Tray Assembly with Fan 370-2158 |
| 6 |
540-2758 |
Front Door Assembly |
| 7 |
540-2851 |
Front Bezel with Plastic Label Cover 330-1973 |
| 8 |
340-3312 |
Peripheral Tray |
| 9 |
501-2939 |
4-Slot Backplane (1.0" or 1.6" height disk) |
| 10 |
530-2226 |
Backplane to LED PCB Cable |
| 11 |
530-2220
530-2381 |
Peripheral Tray SCSI Cable, 83 cm
Peripheral Tray SCSI Cable, 93.5 cm 1 |
| 12 |
530-2221 |
Peripheral Tray DC Cable (×2) |
| 13 |
330-2002 |
Top Cover |
| 14 |
300-1260
300-1444
540-2593 |
300 Watt Power/Cooling Module
300 Watt Power/Cooling Module
Power/Cooling Module Filler Panel |
| 15 |
300-xxxx
540-2757 |
300 Watt Power/Cooling Module
Auxilliary Fan Assembly |
| 16 |
300-1301
300-1307
300-1400
540-2759 |
184 Watt Peripheral Power Supply
184 Watt Peripheral Power Supply with AC Input
184 Watt Peripheral Power Supply with AC Input
Peripheral Power Supply Filler Panel |
| 17 |
330-1993 |
Side Panel |
| NS |
240-2291 |
Door Catch |
| NS |
263-0149 |
E3000 Nameplate |
| NS |
263-0232 |
HPC3000 Nameplate |
| NS |
330-2014 |
Power Key (replaced 330-1651) |
| NS |
530-1871 |
RJ45 to RJ45 Cable, 4M |
| NS |
530-2093 |
Shielded RJ45 to RJ45 Cable, 4M |
| NS |
540-2592 |
Board Slot Filler Panel |
| NS |
595-3780 |
MII to AUI Converter (requires AC power) |
NS
NS |
595-4182
540-2921 |
Floor Mount Bracket, Option X968A
Floor Mount Bracket |
|
802-6051 |
Ultra Enterprise 3000 System Manual |
