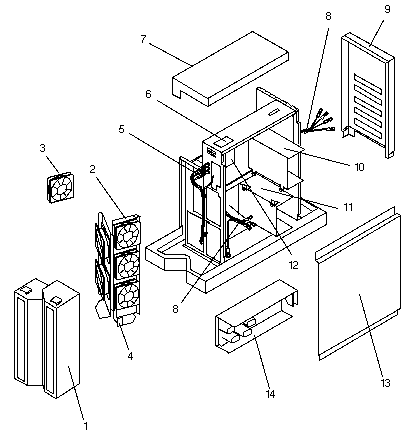

| CODE |
PART # |
DESCRIPTION |
| 1 |
330-1178 |
Rear Cover |
| 2 |
540-1760 |
Fan and Bracket Assembly |
NS
NS
3
4 |
530-1465
530-1468
540-2029
540-1811 |
DC Harness, Power Supply to Peripherals and Fans
 Fan Harness
Fan Assembly, Variable Speed, 105 CFM
AC Receptacle |
| 5 |
530-1470 |
AC Input Harness |
6
NS
NS
NS |
340-1772
501-1432
501-1416
120-1608 |
SCSI Terminator Access Panel
SCSI IN Terminator PCB
SCSI OUT Terminator PCB
220/330 Terminator |
| 7 |
540-1789 |
Top Cover Assembly |
| 8 |
530-1469 |
AC Harness, Internal 1
|
9
NS |
540-1787
340-2500 |
Front Cover Assembly
Front Cover Air Baffle |
10
NS |
540-2133
340-2497 |
Upper Drive Tray Assembly 2
Drive Tray |
11
NS |
540-2132
340-2498 |
Lower Drive Tray Assembly 2
Drive Tray |
| 12 |
150-1129 |
AC Line Filter |
| 13 |
340-1792 |
Left Cover |
| 14 |
300-1072 |
520 Watt Power Supply, Improved -12Vdc output |
| NS |
150-1323 |
AC On/Off Switch |
| NS |
150-1785 |
External Active Terminator, 50-Pin SCSI-2 |
| NS |
240-1605 |
Caster Ball |
| NS |
240-5304 |
SPARCserver 630MP Nameplate |
| NS |
330-1180 |
Cable Retainers |
| NS |
340-1676 |
3U Top Cover |
| NS |
340-1677 |
6U Filler Panel |
| NS |
340-1784 |
6U Side Cover |
| NS |
340-1793 |
Right Cover |
| NS |
340-1800 |
Half-Height Tape Filler Panel |
| NS |
370-1205 |
150MB Tape Drive, Half-Height, QIC-150 |
| NS |
370-1377 |
1.3GB Disk Drive, Seagate 976002-012, PA4E1 |
| NS |
501-1354 |
5-Slot VMEbus Backplane, Pressfit |
| NS |
530-1466 |
Internal SCSI Cable |
| NS |
530-1793 |
External SCSI Cable, 50-Pin SCSI-2, 80 cm, Ferrites |
| NS |
540-1800 |
Caster Plate and Stud |
|
800-3272 |
5-Slot Office Pedestal Field Service Manual |
