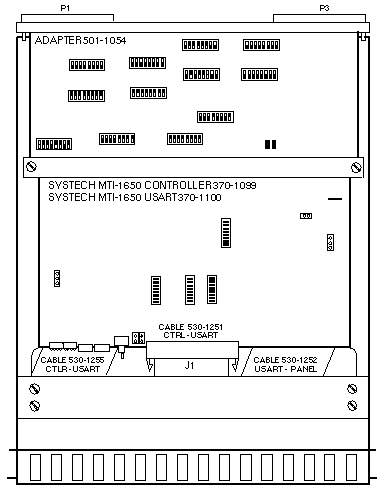

VMEbus to Multibus Adapter

with Systech MTI-1650

Sun-4/260/360

Option 481
501-1157-02

Power:

7.1 Amps @ +5Vdc

0.6 Amps @ +12Vdc

0.4 Amps @ -12Vdc

47.5 Watts

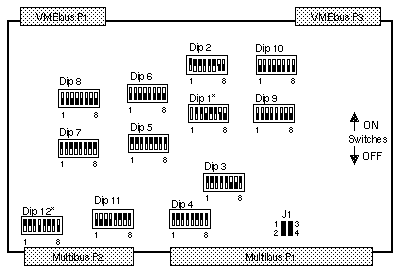

VME TO MULTIBUS ADAPTER BOARD SWITCH SETTINGS
SWITCH	1	2	3	4	5	6	7	8	DESCRIPTION
U1*	N/C	ON	ON	ON	ON	ON	OFF	OFF	I-O Address
U2	N/C	ON	ON	ON	ON	ON	OFF	OFF	I-O Space = 2
U3	ON	ON	ON	ON	ON	OFF	OFF	ON	I-O Address = 0xEE
U4	ON	ON	ON	ON	ON	OFF	OFF	ON	VME I-O Space
U5	ON	ON	ON	ON	ON	ON	ON	ON	24-Bit Memory Address Space
U6	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF	24-Bit Memory Block Size
U7	ON	ON	ON	ON	ON	ON	ON	ON	24-Bit Memory Address Space
U8	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF	24-Bit Memory Block Size
U9	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF	No connection
U10	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF	No connection
U11	OFF	OFF	OFF	OFF	ON	ON	ON	ON	Sets Address Bits A23 - A20
U12*	ON	ON	ON	ON	OFF	ON	ON	OFF	Interrupt Vector
J1	PINS 1-2		IN	If BCLK is desired
	PINS 3-4		IN	If CCLK is desired

* mti1, U1, 2,4,5,6, ON, U12, 2,3,5,6,7, ON
mti2, U1, 2,5,6, ON, U12, 1,3,5,6,7, ON
