SunLink Channel Adapter

Sun-4/260/280/350/360/370/380/390/470/490
SS670MP / SS690MP

370-1128 501-1460
Board Set Board Set

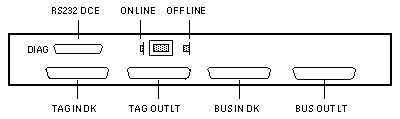

Backpanel and Connectors


Power:

8.6 Amps @ +5Vdc
43.0 Watts

Notes

  1. Replace 370-1128 with 501-1460. Refer to FCO A0003-1.
  2. The Sun-3/110 and Sun 3004 CPU must be 501-1134-06, 501-1163-09, 501-1164-09, or greater. All 501-1208 and 501-1209 revisions are usable.
  3. In Sun-3/2XX systems with multiple SCA boards, the CPU must be 501-1100-08, 501-1206-06, or greater.
  4. The SunLink Channel Adapter must be >=501-1460-02 for use with the Sun 3400 CPU.
  5. The Sun FDDI Board must be >=501-1276-02 for use with the SunLink Channel Adapter.
  6. SunLink Release 7.0 Channel Gateway is required for use with the Sun 3400 CPU.
  7. The Sun 3400 CPU must be >=501-1550-10 for use with the SunLink Channel Adapter.
  8. The Sun 4200 CPU, 501-1274 must be >=501-1274-13 for use with the SunLink Channel Adapter.
  9. The SunLink Channel Adapter is not supported in Solaris >=2.2.

Reference

SunLink Channel Adapter Configuration Procedures, 813-2040-10.


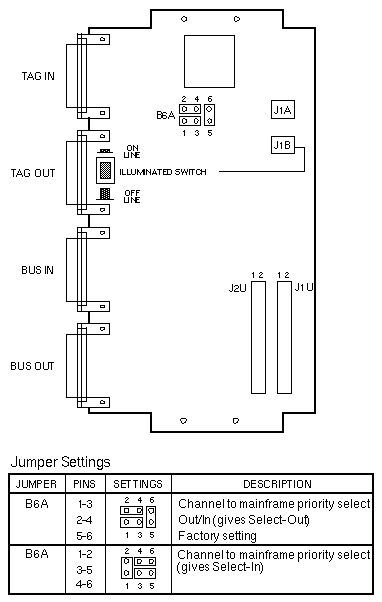

CIO Board

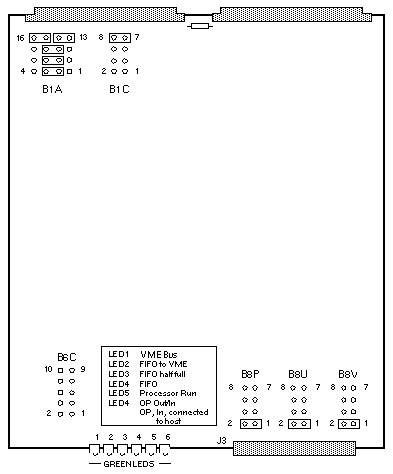

IBD Board


Jumper Settings

JUMPER PINS SETTING DESCRIPTION
B1C 7-8
Others		 In
Out		 VME bus request level BR gives level 3
B1A 2-3
6-7
10-11
13-14
15-16		 In
In
In
In
In		 Bus grant In/Out BG0/BG3 gives level 3
B6C All Out VME bus data transfer timeout
B8P 7-8
3-4
5-6
7-8		 In
Out
Out
Out		 Local processor external bus page
selection BS gives page 0
B8U 1-2
3-4
5-6
7-8		 In
Out
Out
Out		 Interrupt acknowledge page selection
IACK gives page 0
B8V 1-2
3-4
5-6
7-8		 In
Out
Out
Out		 Interrupt request page selection IREQ
gives page 0 and must be the same as
IACK

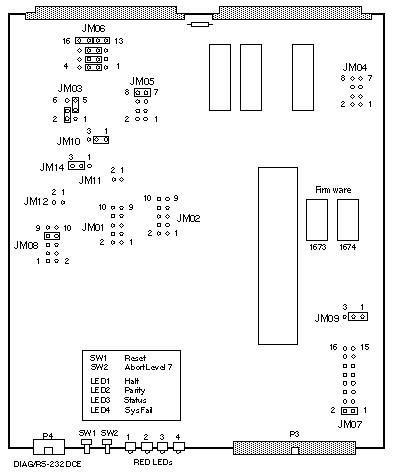

LCP Board


Jumper Settings

JUMPER PINS SETTING DESCRIPTION
JM01 All Out VME BERR timeout 67.1 seconds
JM02 All Out VME LBERR timeout 107.4 seconds
JM03 2-4
3-5		 In
In		 SYSRESET Out disabled
SYSRESET In disabled
JM04 1-2*
3-4
5-6
7-8		 Out*
Out
Out
Out		 1-2, Out, for 1st board (chat0)
1-2, In, for 2nd board (chat1)
JM05 1-2
3-4
5-6
7-8		 Out
Out
Out
In		 Bus request level 0
Bus request level 1
Bus request level 2
Bus request level 3
JM06 2-3
6-7
10-11
13-14
15-16		 In
In
In
In
In		 Select bus grant 3
JM07 1-2 In Local DTACK delay 100ns
JM08 1-2
3-4
5-6
7-8
9-10		 Out
Out
Out
In
Out		 Unclaimed grant timeout 262ms
JM09 1-2
2-3		 In
Out		 EPROM size 128KB
JM10 1-2
2-3		 In
Out		 Arbitration - release when done
JM11 1-2 Out System controller function enabled
JM12 1-2 Out VMEbus priority arbitration
JM14 1-2
2-3		 Out
In		 Minimum address strobe 60ns

Last updated: December 2, 1996
