SunIPC
Sun-4/260/280/330/360/370/380/390
Options SUNIPC / SUNIPC-87
| 501-1125 |
501-1214 |
| w/o 80287 |
w 80287 |
Power:
- 5.6 Amps @ +5Vdc
- 28.0 Watts

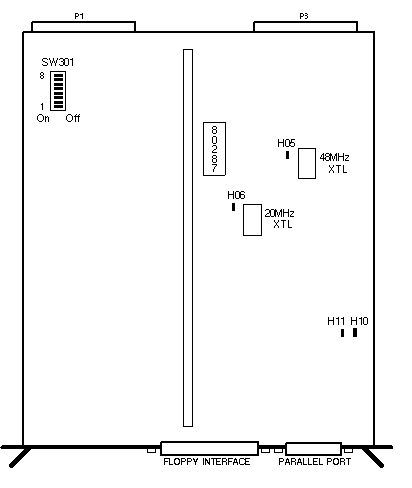

Jumper and Switch Settings
| JUMPER |
SETTING |
DESCRIPTION |
| H05 1-2 |
In |
Enable 48MHz XTAL |
| H06 1-2 |
In |
Enable 20 MHz XTAL |
H10 1-2
|
Out
In |
For 501-1214 with 80287
For 501-1125 without 80287 |
| H11 1-2 |
Out |
Enable XTAL1 |
VME Address 380000; device pc0
| SWITCH |
SETTING |
DESCRIPTION |
SW3-1
SW3-2
SW3-3
SW3-4
SW3-5
SW3-6
SW3-7
SW3-8 |
On
On
Off
Off
Off
On
On
On |
A23
A22
A21
A20
A19
A18
A17
A16 |
VME Address 3C0000; device pc2
| SWITCH |
SETTING |
DESCRIPTION |
SW3-1
SW3-2
SW3-3
SW3-4
SW3-5
SW3-6
SW3-7
SW3-8 |
On
On
Off
Off
Off
Off
On
On |
A23
A22
A21
A20
A19
A18
A17
A16 |
VME Address 3A0000; device pc1
| SWITCH |
SETTING |
DESCRIPTION |
SW3-1
SW3-2
SW3-3
SW3-4
SW3-5
SW3-6
SW3-7
SW3-8 |
On
On
Off
Off
Off
On
Off
On |
A23
A22
A21
A20
A19
A18
A17
A16 |
VME Address 3E0000; device pc3
| SWITCH |
SETTING |
DESCRIPTION |
SW3-1
SW3-2
SW3-3
SW3-4
SW3-5
SW3-6
SW3-7
SW3-8 |
On
On
Off
Off
Off
Off
Off
On |
A23
A22
A21
A20
A19
A18
A17
A16 |
Notes
- The Sun 3200 CPU must be >=501-1100-08 or >=501-1206-06.
- Boards with Aeroscientific FAB date code 8639 may randomly exhibit
"interrupt level2" errors.
Last updated: December 2, 1996
|
