FDK PEX733/PEX794
185 Watt Power Supply
SPARCstorage MultiPack / StorEdge MultiPack
Netra i 150 / Netra nfs 150 / E150
| 300-1330 |
300-1531 |
Type A104
AC Input Power Supply
FDK PEX733 |
Type A156
AC Input Power Supply
FDK PEX794 |
DC OUTPUT
| PIN |
DESCRIPTION |
PIN |
DESCRIPTION |
| 1 |
+5Vdc |
10 |
+5Vdc |
| 2 |
+5Vdc |
11 |
+5Vdc |
| 3 |
Gnd |
12 |
Gnd |
| 4 |
Gnd |
13 |
Gnd |
| 5 |
+5V pre-charge |
14 |
+12V pre-charge |
| 6 |
Gnd |
15 |
Gnd |
| 7 |
Gnd |
16 |
Gnd |
| 8 |
+12Vdc |
17 |
+12Vdc |
| 9 |
+12Vdc |
18 |
+12Vdc |

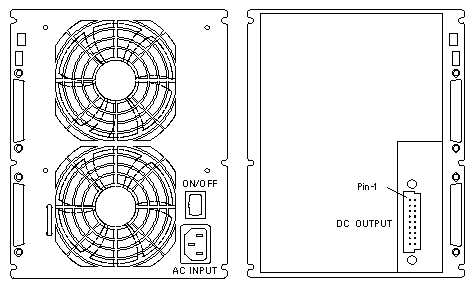

AC Input
DC Output
Notes
- The Netra i 150, Netra nfs 150, and Enterprise 150
systems were discontinued in November 1997.
- Power Supply 300-1531 was released in August 2001, and was not qualified
in the Netra i 150, the Netra nfs 150, or the E150.
|
