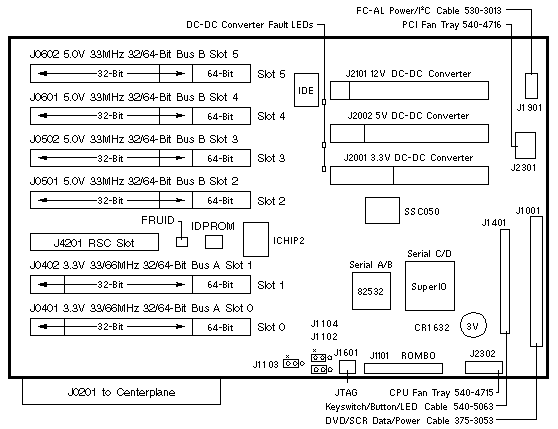

I/O Riser Board
Sun Fire V480
Jumper Settings
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| J1102 |
1-2
2-3 |
In
In |
Select Flash PROM (default)
Select ROMBO |
| J1103 |
1-2
2-3 |
In
In |
FPROM low half booting (default)
FPROM high half booting |
| J1104 |
1-2
2-3 |
In
In |
FPROM write enabled (default)
FPROM write protected |
PCI Slot Device Paths
| PCI Slot |
Device Path |
Speed |
| 0 |
pci@8,600000/<device>@1 |
66MHz |
| 1 |
pci@8,600000/<device>@2 |
66MHz |
| 2 |
pci@8,700000/<device>@2 |
33MHz |
| 3 |
pci@8,700000/<device>@3 |
33MHz |
| 4 |
pci@8,700000/<device>@4 |
33MHz |
| 5 |
pci@8,700000/<device>@5 |
33MHz |
|
Sun Fire V480 Codename: Cherrystone |
Notes
- The minimum operating system is Solaris 8 2/02.
- IDPROM 100-5311 is not available as a FRU.
- The programmed IDPROM contains two MAC addresses.
- DC-DC Converter (3.3V) 300-1437 is not available as a FRU.
- DC-DC Converter (5V) 300-1494 is not available as a FRU.
- DC-DC Converter (12V) 300-1495 is not available as a FRU.
References
-
Sun Fire V480 Product Notes, 816-0905.
-
Sun Fire V480 Administration Guide, 816-0904.
-
Sun Fire V480 Parts Installation and Removal Guide, 816-0907.
|
