JavaStation
JK-xx-16 / JK-xx-32 / JK-xx-64
Jumper Settings
| JUMPER |
PINS |
SETTING |
DESCRIPTION |
| J0502 |
1-2 |
Out |
INT EVENT_L |
| J1202 |
1-2
2-3 |
In
Out |
Select Flash PROM U1200
Select EEPROM J1203 |
| J1300 |
1-2
3-4
5-6
7-8 |
Out
Out
Out
Out |
Software debug use
Manufacturing use
Not implemented
Flash update recovery |

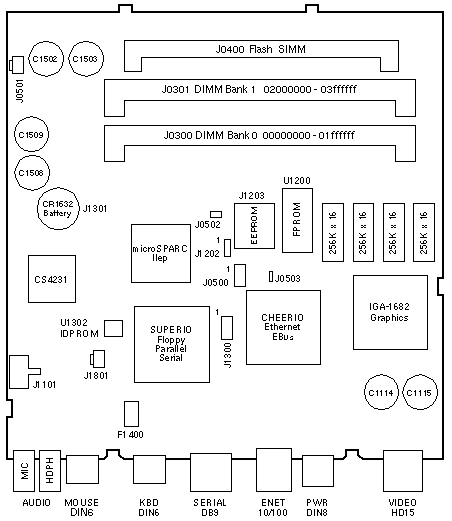

Miscellaneous Connectors
| CONNECTOR |
PINS |
DESCRIPTION |
| J0500 |
8 |
JTAG |
| J0501 |
2 |
Connector not installed |
| J0503 |
2 |
LED cable |
| J1100 |
8 |
DC input power |
| J1101 |
2 |
Power switch |
| J1203 |
30 |
EEPROM (not installed) |
| J1301 |
3 |
CR1632 battery holder |
| J1801 |
2 |
Internal speaker |
Note: The minimum server-side software is Netra j 2.0.
|
