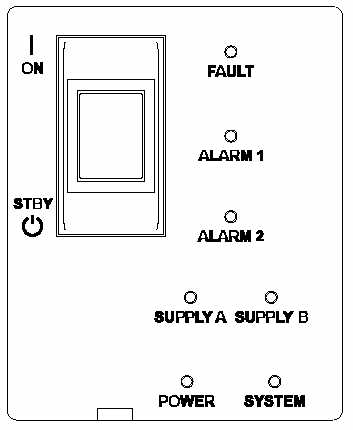

Netra t 1400/1405 LEDsNetra t 1400 System LEDs | ||||||||||||||||||||||||||||||||||||||||||
| LED | Light | Description |
| POWER | Green | Illuminated at all times when the system is on |
| SUPPLY A | Green | Illuminated whenever DC input A is present on all fitted PSUs |
| SUPPLY B | Green | Illuminated whenever DC input B is present on all fitted PSUs |
| SYSTEM | Green |
Off (or reset) during power up procedures Illuminated whenever UNIX is running and the alarms driver is installed This LED is reset by a hardware watchdog timeout, or whenever the user-defined Alarm 3 is asserted. |
| ALARM 1 | Amber | Illuminated whenever the user-defined Alarm 1 is asserted |
| ALARM 2 | Amber | Illuminated whenever the user-defined Alarm 2 is asserted |
| FAULT | Amber |
Flashes when a fan or PSU has failed Illuminated continuously when the ASR watchdog has timed out or when it is manually switched on |
| LED | Light | Description |
| POWER | Green | Illuminated at all times when the system is on |
| SYSTEM | Green |
Off (or reset) during power up procedures Illuminated whenever UNIX is running and the alarms driver is installed This LED is reset by a hardware watchdog timeout, or whenever the user-defined Alarm 3 is asserted. |
| ALARM 1 | Amber | Illuminated whenever the user-defined Alarm 1 is asserted |
| ALARM 2 | Amber | Illuminated whenever the user-defined Alarm 2 is asserted |
| FAULT | Amber |
Flashes when a fan or PSU has failed Illuminated continuously when the ASR watchdog has timed out or when it is manually switched on |
 | | | |
|
