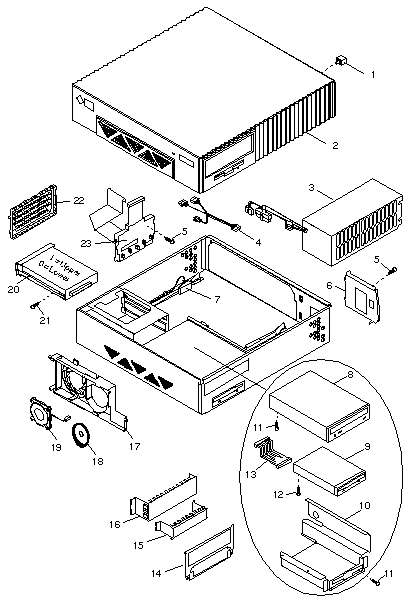

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2540 |
Lockbox |
| 2 |
540-2650 |
Top Cover Assembly |
| 3 |
300-1248 |
180W Power Supply (obsolete) |
| 3 |
300-1308 |
180W Power Supply |
| 4 |
530-2176 |
Peripheral and Fan Wire Harness |
| 5 |
240-2101 |
M3 Captive Screw |
| 6 |
330-1896 |
Power Supply Bezel |
| 7 |
530-2175 |
Speaker and LED Wire Harness |
8
8
8
8
8
8 |
370-1922
370-2102
370-2176
370-2377
370-2881
370-2816 |
14GB 8 mm Tape Drive
4X CD-ROM
4-8GB 4 mm DDS-2 Tape Drive
12-24GB 4 mm DDS-3 Tape Drive
7-14GB 8 mm Tape Drive
12X CD-ROM
|
9
9
- |
370-2151
370-3212
530-2316 |
3D Floppy Drive
3D Floppy Drive
 Floppy DC Power Filter Cable, 76 mm |
| 10 |
340-3186 |
Floppy and CD-ROM Mounting Bracket |
| 11 |
240-1878 |
#6-32 × 5/16" Screw (CD-ROM) |
| 12 |
240-1530 |
M3 × 6 mm Screw (Floppy Drive) |
| 13 |
530-2187 |
Floppy Data Cable, 205 mm |
| 14 |
330-1895 |
Floppy and CD-ROM Bezel |
| 15 |
540-2700 |
Floppy Filler Panel |
| 16 |
540-2701 |
CD-ROM Filler Panel |
17
18 |
540-2710
370-1579 |
Speaker Assembly
Speaker |
| 19 |
540-2666 |
Fan Assembly |
20
20
20
20
20
20 |
540-2729
540-2730
540-2782
540-2936
540-3171
540-2938 |
1.05GB 5400 RPM Disk Drive Assembly/FRU
2.1GB 7200 RPM Disk Drive Assembly/FRU
2.1GB 5400 RPM Disk Drive Assembly/FRU
2.1GB 7200 RPM Disk Drive Assembly/FRU
2.1GB 5400 RPM Disk Drive Assembly/FRU
4.2GB 7200 RPM Disk Drive Assembly/FRU |
21
21 |
240-2080
240-2304 |
#6-32 x 3/16" Torx Screw
#6-32 x 3/16" Torx Screw |
| 22 |
340-3201 |
Disk Drive Access Cover |
| 23 |
530-2153 |
Peripheral Data Cable Assembly, 410 mm |
| NS |
262-0060 |
Netra i Nameplate |
| NS |
263-0064 |
Ultra 1 Creator Nameplate |
| NS |
263-0065 |
Ultra 1 Creator 3D Nameplate |
| NS |
263-0066 |
Ultra 1 Server Nameplate |
| NS |
260-6233 |
Sun Logo |
| NS |
330-1839 |
Foot |
| NS |
340-3187 |
SBus Filler Panel |
| NS |
530-1871 |
RJ45 to RJ45 Cable, 4M |
| NS |
530-2068 |
DB25 to 36-Pin Centronics Parallel Cable, 5M |
| NS |
530-2093 |
Shielded RJ45 to RJ45 Cable, 4M |
| NS |
595-3780 |
MII to AUI Converter (requires AC power) |
| - |
802-4148 |
Sun Ultra 1 Creator Series Service Manual |
