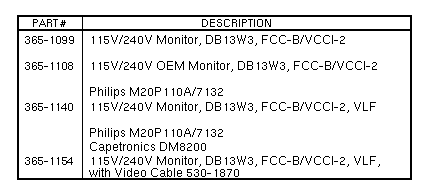

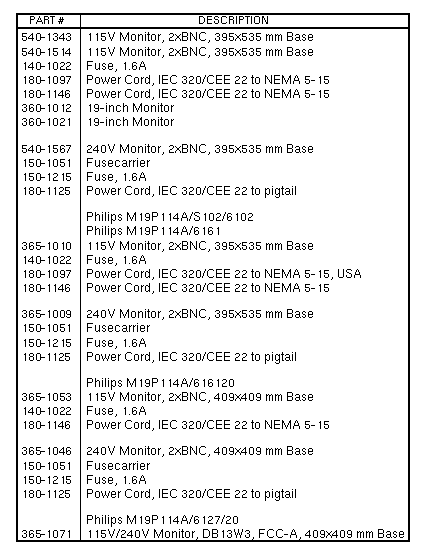

Volume II: Parts Breakdown - Monitor19-inch Greyscale CRTImage Size: 350 mm Horizontal / 273 mm Vertical / 443 mm Diagonal
Pixel Horizontal Vertical
Resolution Frequency Frequency
---------- ---------- ---------
1152 x 900 61.8KHz 66Hz
19-inch Greyscale CRTImage Size: 350 mm Horizontal / 273 mm Vertical / 443 mm Diagonal
Pixel Horizontal Vertical
Resolution Frequency Frequency
---------- ---------- ---------
1152 x 900 71.7KHz 76Hz
1076 x 824 71.7KHz 76Hz
| ||||||||||||
|
||||||||||||
