AC Power Sequencer
Remote and Local Bus Connectors

300-1011 / 300-1263 / 300-1264
370-1126 / 370-1127 / 370-1155 / 370-1156

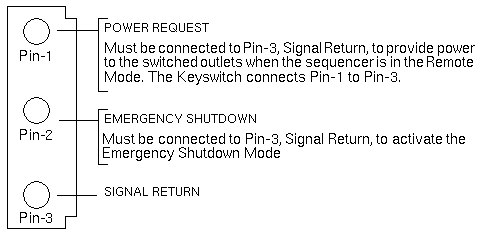

Remote I/O Connectors J6, J7, J8, and J9

A parallel circuit connects J6, J7, J8, and J9. Inputs to the Remote I/O Connectors are activated by mechanical toggle, key switch, transistor, integrated circuit, or thermoswitch with a normal open configuration.

CONNECTOR PART NUMBER USED WITH PART NUMBER
Female
Male		 AMP 1-480304-0
AMP 1-480305-0		 Socket Terminals
Contact Pins		 AMP 60619-1
AMP 60620-1

Cable Description

Use 3-conductor, #22 AWG stranded wire.

Remote - OFF - Local Switch

POSITION DESCRIPTION
REMOTE AC output of the Switched 1 and Switched 2 outlets is enabled
when the breaker is ON and the Power Request is connected
to Signal Return on the Remote I/O Connectors.
OFF The AC output of the Switched 1 and Switched 2 outlets is disabled.
LOCAL The AC output of the Switched 1 and Switched 2 outlets is
enabled when the Circuit Breaker is ON.
