CG9 24-bit Color Frame Buffer

Sun-3/260/460/470/480
Sun-4/150/260/280/330/350/360/370/380/390/470/490

501-1434


UNIX ID: /dev/cgnine0

Power

14.6 Amps @ +5Vdc
73.0 Watts

Notes

  1. The GP2 must be 501-1268-07 when used with CG9.
  2. The CG9 is not supported with the GP or GP+.
  3. CG9 must be >=501-1434-04 for use with the Xylogics 7053.
  4. The CG9 is not supported under OpenWindows Versions 2 or 3.

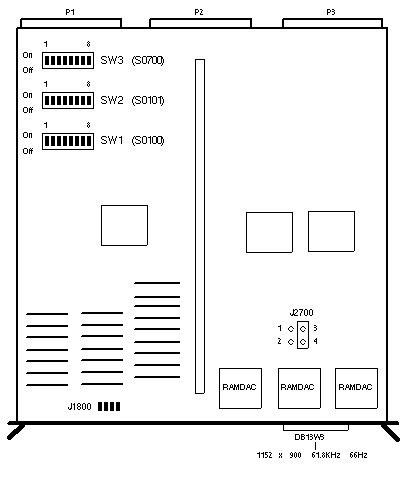

Jumper and Switch Settings

JUMPER PINS SETTING DESCRIPTION
J1800 1-2
3-4
5-6
7-8		 Out
Out
Out
Out		 Display
Video blank
N/C
N/C
J2700 1-2
3-4		 Out
In		 Sync or Green
Normal operation sync

SW1 S0100

DIP SETTING DESCRIPTION
1
2
3
4
5
6
7
8		 On
On
On
Off
On
On
On
On		 A24
A25
A26
A27
A28
A29
A30
A31

SW2 S0101

DIP SETTING DESCRIPTION
1
2
3
4
5
6
7
8		 On/Off
On/Off
On
On/Off
Off
On
On
On		 N/C
N/C
Flag
N/C
A32 mode
AM4 switch
AM5 switch
A23 mode

SW3 S0700

DIP SETTING DESCRIPTION
1
2
3
4
5		 Off
Off
Off
Off
On		 P2 Bus enable
Selects board 3
Selects board 2
Selects board 1
Selects board 0
6
7
8		 On
Off
On		 N/C
N/C
N/C

Reference

Installation and Configuration Guide for the CG9 Color Frame Buffer, 800-3627.
