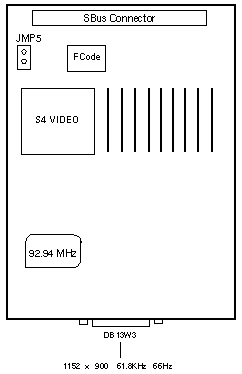

MG2 Analog Frame Buffer
Sun-4/15/30/40/50/60/65/75
SS4 / SS5 / SS10 / SS20 / SS600
| 501-1455 |
501-8062 |
|
w 4/E Backpane |
Jumper JMP5
| PINS |
SETTING |
DESCRIPTION |
1-2
1-2 |
In
Out |
Select 27C256 EPROM
Select 27C64 EPROM |
UNIX ID: /dev/bwtwo0
Power:
- 0.4 Amps @ +5Vdc
- 2.0 Watts
Note
- The MG2 Frame Buffer produces a 1-bit Analog output.
MG2 Analog Frame Buffer
Sun-4/15/30/40/50/60/65/75
SS4 / SS5 / SS10 / SS20 / SS600

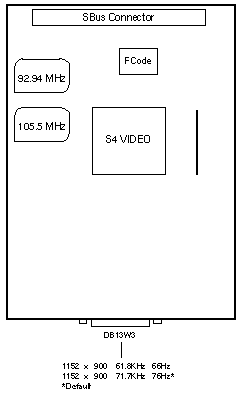

| 501-1561 |
501-8077 |
|
w 4/E Backpane |
UNIX ID: /dev/bwtwo0
Power:
- 0.3 Amps @ +5Vdc
- 1.6 Watts
Note
- The MG2 Frame Buffer produces a 1-bit Analog output.
