Active Filter: Linkwitz 24dB Highpass

(4st order, 24 dB/octave, Highpass)

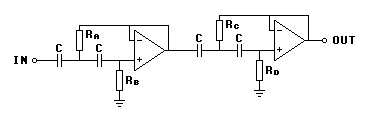

4th order Linkwitz Highpass

C=4.7n-10nF
Ra=Rc=1/(2*sqr(2)*pi*Fc*C)
Rb=Rd=2Ra

Units: Rx [Ohm], C [F], Fc [Hz]

Contributor: Joakim Ögren
Source: ?
