Operation Amplifier: Non-inverting Amplifier

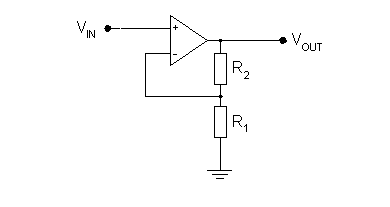

Non-Inverting Operation Amplifier

VOUT= (1+R1/R2)*VIN

One positive effect with this design is that the signal isn't inverted. But you can't have less gain than 1 times the in-signal.
