COGENT ELECTRONICS, INC.

PC PRIME TIME

Card Type

Motion video display card

Chipset/Controller

Chips and Technology

I/O Options

Audio/video in, audio line in (2), speaker, VGA pass-through, video port

Maximum DRAM

N/A

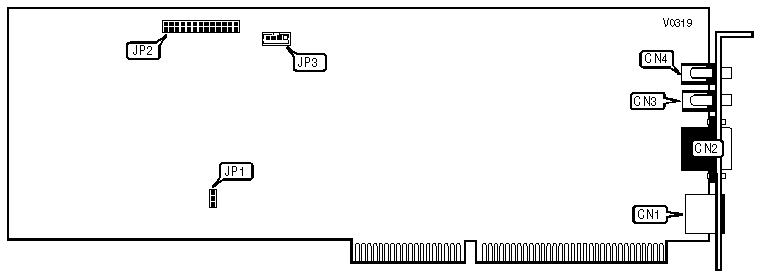

CONNECTIONS

Purpose

Location

Purpose

Location

Audio/video in

CN1

Speaker jack

CN4

15-pin analog video port

CN2

VGA pass-through connector

JP2

Line in

CN3

CD audio cable connector

JP3

I/O ADDRESS CONFIGURATION

Address

JP1

0AD6h

Pins 2 & 3 closed



Software programmable

Pins 1 & 2 closed
