LASONIC

LVC-110AV

Card Type

Video capture card

Chip Set

None

Highest Resolution Supported

1024 x 768 (NTSC)

Maximum Onboard Memory

None

I/O Options

Audio in, audio out, CD-ROM audio, TV tuner, VGA feature connector, video in, VGA in, VGA out

Data Bus

16-bit ISA

Floppy drives supported

None

Video Types Supported

XVGA

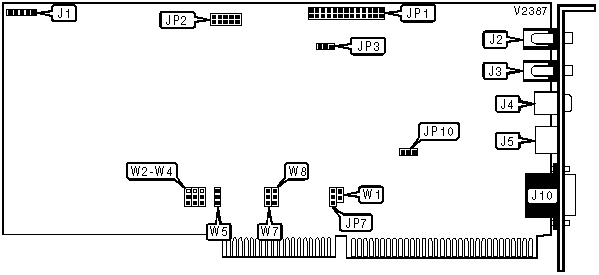

CONNECTIONS

Function

Label

Function

Label

CD-ROM - audio in

J1

VGA in

J5

Audio out

J2

VGA out

J10

Audio in

J3

VGA feature connector

JP1

Video in

J4

TV tuner

JP2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Skew set at normal

JP3

Pins 1 & 2 closed



Skew set at Hi-color

JP3

Pins 2 & 3 closed

»

Video IRQ15 select

JP7

Pins 1 & 2 closed



Video IRQ12 select

JP7

Pins 2 & 3 closed



Video address

W1

Unidentified

»

Audio IRQ11 select

W4

Pins 1 & 2 closed



Audio IRQ10 select

W4

Pins 2 & 3 closed

»

Audio address is 534h - 537h

W5

Pins 1 & 2 closed



Audio address is 608h - 60Bh

W5

Pins 2 & 3 closed

AUDIO DMA CHANNEL SELECTION

Channel

W2

W3



0

Pins 1 & 2 closed

Pins 1 & 2 closed

»

1

Pins 2 & 3 closed

Pins 2 & 3 closed

VIDEO MODE SELECTION

Setting

W7

W8

»

Linear

Pins 1 & 2 closed

Pins 1 & 2 closed



Page

Pins 2 & 3 closed

Pins 2 & 3 closed

MISCELLANEOUS TECHNICAL NOTE

Note: The exact function & purpose of JP10 is unidentified.
