Card Type	SCSI bus adapter module
Card Size	Half-length, half-height card

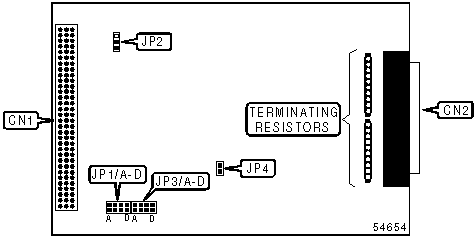

CONNECTIONS
Function	Label	Function	Label
Host adapter connector	CN1	68-pin SCSI connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Memory decode select DECODES0	JP2	Pins 2 & 3 closed
	Memory decode select DECODES1	JP2	Pins 1 & 2 closed
»	Termination power enabled	JP4	Closed
	Termination power disabled	JP4	Open

CPU INTERRUPT SELECTION
Interrupt		JP1/A	JP1/B	JP1/C	JP1/D
»	EINT0	Closed	Open	Open	Open
	EINT1	Open	Closed	Open	Open
	EINT2	Open	Open	Closed	Open
	EINT3	Open	Open	Open	Closed

DMA INTERRUPT SELECTION
Interrupt		JP3/A	JP3/B	JP3/C	JP3/D
	EINT0	Closed	Open	Open	Open
»	EINT1	Open	Closed	Open	Open
	EINT2	Open	Open	Closed	Open
	EINT3	Open	Open	Open	Closed
