PROLINK COMPUTER, INC.

PIXELVIEW-T9510

Category

Video

Video Type

XVGA

Video Processor

PC View

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

2MB

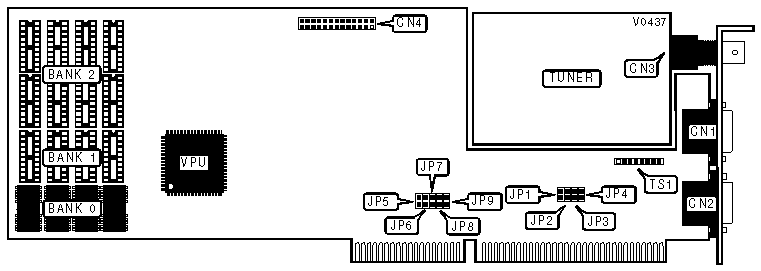

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin video/audio port

CN1

Tuner input

CN3

15-pin analog video port

CN2

VESA feature connector

CN4

FACTORY CONFIGURED SETTINGS

Jumper

Setting

TS1 (test point)

Open

JP5

Open

I/O BASE ADDRESS

Address

JP1

JP2

JP3

JP4

280h

Closed

Closed

Closed

Open



200h

Closed

Closed

Closed

Closed



210h

Open

Closed

Closed

Closed



220h

Closed

Open

Closed

Closed



230h

Open

Open

Closed

Closed



240h

Closed

Closed

Open

Closed



250h

Open

Closed

Open

Closed



260h

Closed

Open

Open

Closed



270h

Open

Open

Open

Closed



290h

Open

Closed

Closed

Open



2A0h

Closed

Open

Closed

Open



2B0h

Open

Open

Closed

Open



2C0h

Closed

Closed

Open

Open



2D0h

Open

Closed

Open

Open



2E0h

Closed

Open

Open

Open



2F0h

Open

Open

Open

Open

INTERRUPT SELECTION

IRQ

JP6

JP7

JP8

JP9

IRQ10

Open

Closed

Open

Open



IRQ3

Open

Open

Closed

Open



IRQ7

Open

Open

Open

Closed



IRQ15

Closed

Open

Open

Open

VIDEO MEMORY CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

512KB

(4) 256K x 4

NONE

NONE



1MB

(4) 256K x 4

(4) 256K x 4

NONE



2MB

(4) 256K x 4

(4) 256K x 4

(8) 256K x 4
