VIDEOLOGIC, INC.

CAPTIVATOR PRO

Category

Video

Video Types Supported

N/A

Video Processor

Unidentified

Highest Resolution Supported

N/A

Data Bus Type

16-bit ISA

Memory Type

N/A

Maximum Onboard Memory

N/A

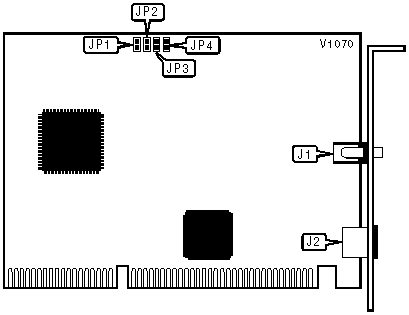

CONNECTIONS

Purpose

Location

Purpose

Location

Audio out

J1

S-video connector

J2

BASE I/O ADDRESS SELECTION

Address

JP1

JP2

JP3

JP4

350h

Open

Closed

Open

Open



340h

Closed

Open

Open

Open



360h

Open

Open

Closed

Open



370h

Open

Open

Open

Closed
