VIDEO LOGIC, INC.

MPEG PLAYER

Category

MPEG card

Video Types Supported

XVGA

Video Processor

Unidentified

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

N/A

Maximum Onboard Memory

N/A

CONNECTIONS

Purpose

Location

Purpose

Location

Audio out

CN1

VGA feature connector

CN3

15-pin analog video port

CN2

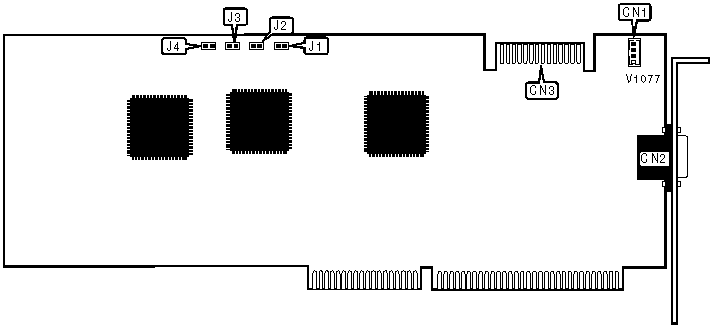

BASE MEMORY ADDRESS SELECTION

Address

J1

J2

J3

J4

300h

Closed

Open

Open

Open



310h

Open

Closed

Open

Open



320h

Open

Open

Closed

Open



330h

Open

Open

Open

Closed
