ADVANCED MICRO TECHNOLOGY, INC.

SIGMA SIX

Data bus:

16-bit, ISA

Size:

Full-length, full-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

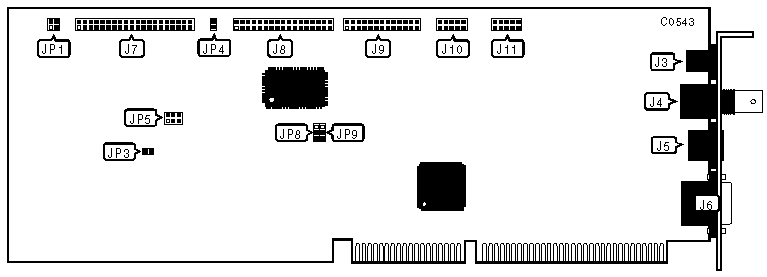

CONNECTIONS

Function

Location

RJ-11 modem jack

J3

RG-58A/U 50ohm coaxial connector

J4

RJ-45 Unshielded twisted pair connector

J5

15-pin analog video port

J6

40-pin IDE(AT) Interface connector

J7

34-pin control cable connector-floppy drive

J8

25-pin parallel port

J9

10-pin serial port 1 (COM1/COM3)

J10

10-pin serial port 2 (COM2/COM4)

J11

2-pin connector - drive active LED

JP4

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

IDE interface (J7) enabled

JP1

Open



IDE interface (J7) disabled

JP1

pins 1 & 2 closed

»

IDE and floppy drive (J8) enabled

JP1

Open



IDE and floppy drive (J8) disabled

JP1

pins 3 & 4 closed

»

FlashDisk Write enabled

JP3

Closed



FlashDisk Write disabled

JP3

Open



Factory configured - do not alter

JP5

pins 3 & 5, 4 & 6 closed

»

Cable type RG-58A/U 50ohm selected

JP8 & JP9

pins 1 & 2 closed



Cable type Unshielded twisted pair selected

JP8 & JP9

pins 2 & 3 closed
