ADAPTEC, INC.

AHA-2940W

Data bus:

PCI local-bus

Size:

Half-length, full-height card

Hard drive supported:

Up to seven SCSI devices

Floppy drives supported:

None

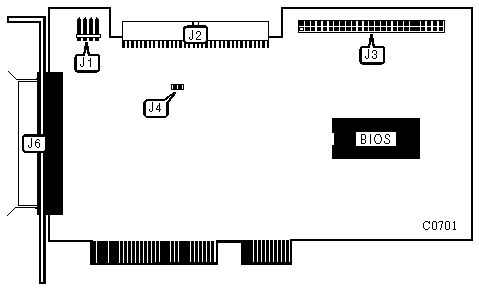

CONNECTIONS

Function

Location

4-pin connector - drive active LED

J1

68-pin SCSI (Wide) connector - internal

J2

50-pin SCSI connector - internal

J3

68-pin SCSI (Wide) connector - external

J6

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

TERMPWR disabled

J4

open



TERMPWR enabled

J4

closed
