ASUS COMPUTER INTERNATIONAL

PCI-AS7870

Data bus:

Proprietary Media Bus

Size:

Three-quarter length, full-height card

Hard drive supported:

Up to fifteen Wide SCSI-2 devices

Up to seven Fast SCSI-2 devices

Floppy drives supported:

None

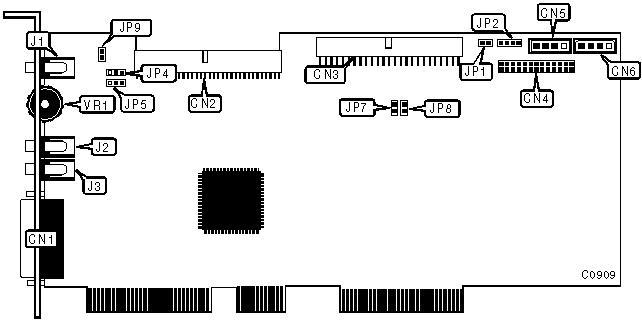

CONNECTIONS

Function

Location

16-pin game and midi port

CN1

68-pin Wide SCSI connector - internal

CN2

50-pin SCSI connector - internal

CN3

Wave table connector - upgrade option

CN4

Mitsumi CD-ROM cable connector - audio

CN5

Panasonic DC-ROM cable connector - audio

CN6

Line out - audio

J1

Line in - microphone

J2

Line in - audio

J3

System speaker input connector

JP1

Sony CD-ROM cable connector - audio

JP2

Drive active LED

JP9

Volume control

VR1

BASE ADDRESS SELECTION

Address

JP7

JP8

»

220h

closed

closed



240h

open

closed



260h

closed

open



280h

open

open

AMPLIFIER SELECTION

Setting

JP4

JP5

»

Amplifier disabled

pins 1 & 2 closed

pins 1 & 2 closed



Amplifier enabled

pins 2 & 3 closed

pins 2 & 3 closed
