ADAPTEC, INC.

AHA-2944UW

Card Type

Hard drive controller card

Hard Drives supported

Up to 15 SCSI devices

Floppy drives supported

None

Data Bus

32-bit PCI

Card Size

Half-length, full-height card

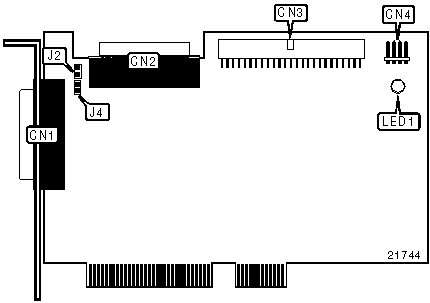

CONNECTIONS

Function

Location

Function

Location

68-pin SCSI connector - external

CN1

50-pin SCSI connector - internal

CN3

68-pin SCSI connector - internal

CN2

4-pin LED connector

CN4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Auto termination SCSI channel 0-7 enabled

J4

Closed



Auto termination SCSI channel 0-7 disabled

J4

Open

»

Auto termination SCSI channel 8-15 enabled

J2

Closed



Auto termination SCSI channel 8-15 disabled

J2

Open

DIAGNOSTIC LED(S)

Note: The function of LED1 is unidentified.
