DATA TECHNOLOGY CORPORATION

DTC2183 (400511-89B)

Data Bus

16-bit ISA

Card Size

Half-height, half-length card

Hard Drives supported

Two IDE (AT) drives

Floppy drives supported

None

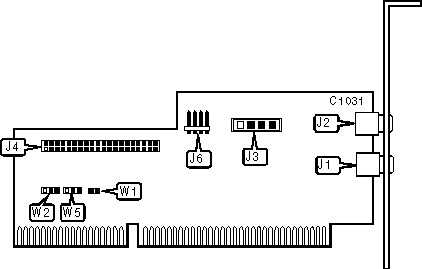

CONNECTIONS

Function

Location

Function

Location

Right channel audio out

J1

40-pin IDE(AT) interface connector

J4

Left channel audio out

J2

4-pin drive active LED

J6

CD-ROM audio in

J3



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

IDE(AT) interface secondary address is 170h-177h

W1

Closed



IDE(AT) interface primary address is 1F0h-1F7h

W1

Open

»

Hard drive IRQ15 select

W2

Pins 2 & 3 closed



Hard drive IRQ14 select

W2

Pins 1 & 2 closed



Hard drive secondary IRQ11 select

W5

Pins 2 & 3 closed



Hard drive secondary IRQ12 select

W5

Pins 1 & 2 closed

Note: Jumper W5 is effective only when jumper W1 is closed (secondary address is 170h-177h)

MISCELLANEOUS TECHNICAL NOTES

The DTC 2183 (Rev. B) can coexist with ST506/412(MFM), ST506/412(RLL), ESDI, SCSI and IDE controllers. Also supports ATAPI IDE CD-ROM drives.
