GIGA-BYTE TECHNOLOGY, INC.

VLS-6360

Data bus:

32-bit, VL-bus

Size:

Three/quarter-length, half-height card

Hard drive supported:

Up to fourteen SCSI devices

Floppy drives supported:

360KB, 720KB, 1.2MB, or 1.44MB drives

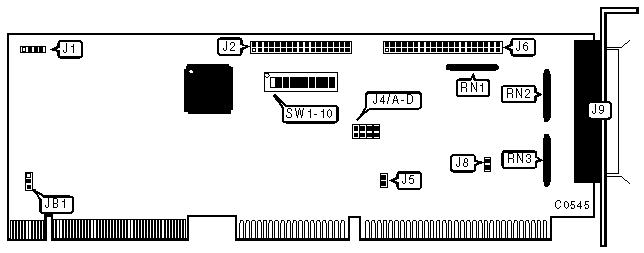

CONNECTIONS

Function

Location

4-pin connector - drive active LED

J1

34-pin control cable connector - floppy drive

J2

50-pin SCSI connector - internal

J6

50-pin SCSI connector - external

J9

SCSI terminator

RN1

SCSI terminator

RN2

SCSI terminator

RN3

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

SCSI I/O port address = 340h - 35Fh

SW1

On



SCSI I/O port address = 140h - 15Fh

SW1

Off

»

BIOS enabled

SW2

On



BIOS disabled

SW2

Off

»

Floptical/SCSI floppy BIOS support disabled

SW7

Off



Floptical/SCSI floppy BIOS support enabled

SW7

On

»

HD > 1GB or floptical/SCSI floppy support disabled

SW8

Off



HD > 1GB or floptical/SCSI floppy support enabled

SW8

On

»

SCSI synchronous negotiation enabled

SW9

On



SCSI synchronous negotiation disabled

SW9

Off

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

SCSI disconnect enabled

SW10

On



SCSI disconnect disabled

SW10

Off



Floppy controller enabled

J5

Closed



Floppy controller disabled

J5

Open

»

Normal use and support disk utility

J8

Open



HD > 1GB or floptical/SCSI floppy support enabled

J8

Closed

»

Mother board has ID3 jumper or synchronize local delay

JB1

pins 2 & 3 closed



No ID3 jumper or synchronize local delay on mother board

JB1

pins 1 & 2 closed

BIOS ADDRESS SELECT

Address

SW3

SW4

»

DC000h

On

On



D8000h

Off

On



CC000h

On

Off



C8000h

Off

Off

SCSI INTERRUPT REQUEST

IRQ

J4/A

J4/B

J4/C

J4/D

SW5

SW6

»

IRQ11

Open

Open

Closed

Open

Off

On



IRQ9

Closed

Open

Open

Open

Off

Off



IRQ10

Open

Closed

Open

Open

On

Off



IRQ12

Open

Open

Open

Closed

On

On
