FIRST INTERNATIONAL COMPUTER, INC.

MIO-V (16-BIT VERSION)

Data bus:

16-bit, ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE (AT) interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

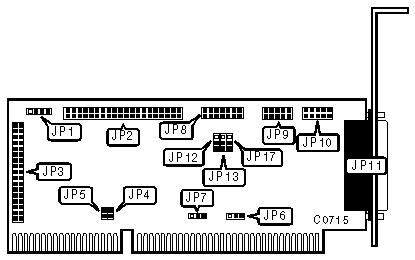

CONNECTIONS

Function

Location

4-pin connector - drive active LED

JP1

40-pin IDE (AT) Interface connector

JP2

34-pin control cable connector - floppy drive

JP3

Game port

JP8

10-pin serial port 2

JP9

10-pin serial port 1

JP10

25-pin parallel port

JP11

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Floppy drive enabled

JP17

pins 1 & 2 closed



Floppy drive disabled

JP17

pins 2 & 3 closed

IDE PORT

Setting

JP4

JP5

»

Enabled

closed

open



Disabled

open

open

SERIAL PORTS 1 & 2 CONFIGURATION

Port 1

Port 2

JP6

JP7

»

COM1

COM2

pins 1 & 2 closed

pins 1 & 2 closed



COM3

COM4

pins 1 & 2 closed

pins 2 & 3 closed



COM1

COM4

pins 2 & 3 closed

pins 1 & 2 closed



COM2

COM3

pins 2 & 3 closed

pins 2 & 3 closed

PARALLEL PORT CONFIGURATION

LPT

JP12

JP13

»

LPT1

pins 1 & 2 closed

pins 2 & 3 closed



LPT2

pins 1 & 2 closed

pins 1 & 2 closed



LPT3

pins 2 & 3 closed

pins 1 & 2 closed



Disabled

pins 2 & 3 closed

pins 2 & 3 closed
