ICL

POWERARRAY XL ADAPTOR (RAID)

POWERCACHE XL ADAPTOR (NORMAL SCSI)

Data bus:

32-bit EISA

Size:

Full-length, full-height card

Hard drive supported:

Up to seven Dual/Differential SCSI-2 or Fast SCSI devices

Floppy drives supported:

None

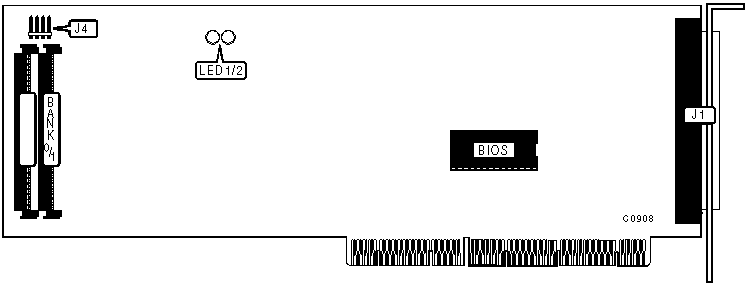

CONNECTIONS

Function

Location

100-pin SCSI bus 0 and 1 connector - external

J1

4-pin connector - drive active LED

J4

Status LED

LED1/2

DRAM CONFIGURATION

Size

Bank 0/1

Bank 0/1

2MB

(1) 256K x 36

(1) 256K x 36

8MB

(1) 1M x 36

(1) 1M x 36
