INTELLIGENT COMPUTER PERIPHERALS

GDT6515, GDT6517

Maximum Onboard Memory

64MB

Data Bus

32-bit PCI

Card Size

Full-height, half-length card

Hard Drives Supported

Up to 7 Wide SCSI devices

Floppy Drives Supported

None

RAID Levels Supported

RAID 0, 1, 4, 5

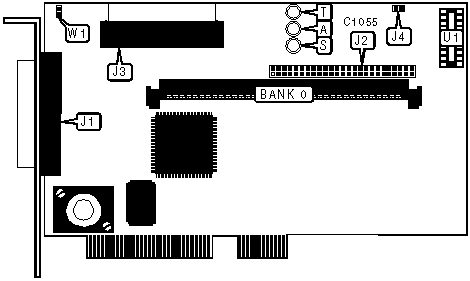

CONNECTIONS

Function

Label

Function

Label

68-pin SCSI connector - external

J1

2-pin connector - drive active LED

J4

50-pin SCSI connector - internal

J2

RAID GAL

U1

68-pin SCSI connector - internal

J3



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Active termination power enabled

W1

Closed



Active termination power disabled

W1

Open

DRAM CONFIGURATION

Size

Bank 0

4MB

(1) 1M x 32

8MB

(1) 2M x 32

16MB

(1) 4M x 32

32MB

(1) 8M x 32

64MB

(1) 16M x 32

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

T

Green

On

Direct memory access is in progress

T

Green

Off

Direct memory access is not in progress

A

Yellow

On

SCSI bus is active

A

Yellow

Off

SCSI bus is not active

S

Green

On

Card is operating normally

S

Green

Off

An error has occurred
