JPN CORPORATION

CA8370

Data Bus

16-bit ISA

Card Size

Half height, half length

Hard Drives Supported

Two IDE(AT) devices

Floppy Drives Supported

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

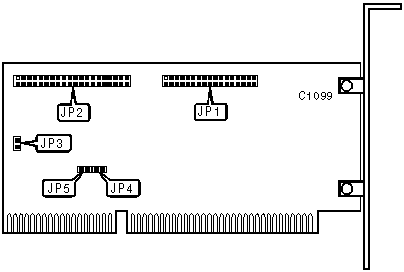

CONNECTIONS

Function

Label

Function

Label

34-pin cable connector - floppy drive

JP1

2-pin drive active LED

JP3

40-pin IDE(AT) connector

JP2



USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Floppy drive interface enabled

JP4

Closed



Floppy drive interface disabled

JP4

Open

»

IDE(AT) interface enabled

JP5

Closed



IDE(AT) interface disabled

JP5

Open
