PERCEPTIVE SOLUTIONS, INC.

EASYCACHE PRO SCSI, EASYCACHE SCSI (RELEASE 2.0)

Data bus: 16-bit, ISA

Size: Full-length, full-height card

Hard Drives Suppported: Up to seven SCSI devices

Floppy Drives Supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives

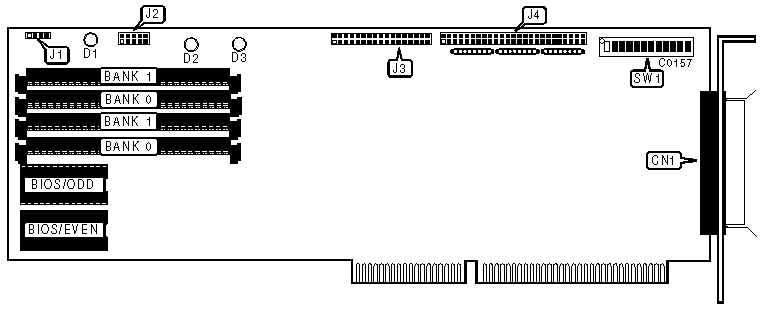

CONNECTIONS

Functions

Location

DB25 SCSI connector-external (easyCACHE Pro only)

CN1

4-pin connector-Drive Active LED

J1

9-pin serial port

J2

34-pin control cable connector-floppy drive

J3

50-pin SCSI connector-internal

J4

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Hard drive port address 1F0-1F7h, 3F0-3F1h, 3F7h

SW1/switch 3

off



Hard drive port address 170-177h, 370-371h, 377h

SW1/switch 3

on

»

Floppy drive enabled

SW1/switch 4

off



Floppy drive disabled

SW1/switch 4

on

»

Single-speed floppy supported

SW1/switch 5

off



Dual-speed floppy supported

SW1/switch 5

on

»

Factory configured - do not alter

SW1/switch 10

off

»

hSOS load enabled

SW1/switch 11

off



hSOS load disabled

SW1/switch 11

on

»

Termination Power enabled

SW1/switch 12

on



Termination Power disabled

SW1/switch 12

off

BIOS ADDRESS

Address

SW1/switch 1

SW1/switch 2



C800h

off

off

»

D800h

on

off



D000h

off

on



Disabled

on

on

INTERRUPT REQUEST

IRQ

SW1/switch 6

SW1/switch 7

SW1/switch 8

SW1/switch 9



Disabled

off

off

off

off



IRQ5

on

off

off

off



IRQ12

off

on

off

off

»

IRQ14

off

off

on

off



IRQ15

off

off

off

on

CACHE MEMORY CONFIGURATION

Size

Bank 0

Bank 1

512KB

(2) 256K x 9

NONE

1MB

(2) 256K x 9

(2) 256K x 9

2MB

(2) 1M x 9

NONE

2.5MB

(2) 1M x 9

(2) 256K x 9

4MB

(2) 1M x 9

(2) 1M x 9

8MB*

(2) 4M x 9

NONE

8.5MB*

(2) 4M x 9

(2) 256K x 9

10MB*

(2) 4M x 9

(2) 1M x 9

16MB*

(2) 4M x 9

(2) 4M x 9

Note:* 4MBx9 SIMM's are only supported by the easyCACHE Pro IDE controller

LED INFORMATION

LED

Color

Status

Condition

D1

Unidentified

On

Hard drive active

D1

Unidentified

Off

Hard drive inactive

D2

Unidentified

On

SCSI termination power supplied by SCSI bus

D2

Unidentified

Off

No SCSI termination detected

D3

Unidentified

On

Data transfer from cache in progress

D3

Unidentified

Off

Cache inactive
