SUNIX CO., LTD.
SUN-5246HT (EX-3050)
|
Data Bus |
16-bit ISA |
|
Card Size |
Half-length, full-height card |
|
Hard Drives supported |
Two IDE (AT) drives |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88 MB drives |
|

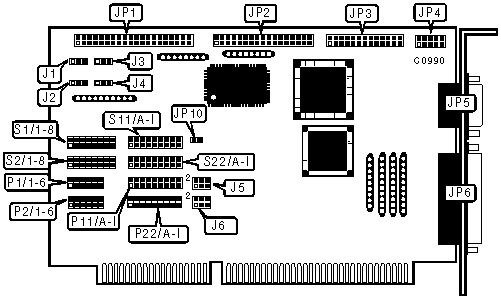

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
40-pin IDE(AT) connector |
JP1 |
10-pin serial port 2 - internal |
JP4 |
|
34-pin cable connector - floppy drive |
JP2 |
9-pin serial port 1 - external |
JP5 |
|
26-pin parallel port 2 - internal |
JP3 |
25-pin parallel port 1 - external |
JP6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Floppy drive interface enabled |
J1 |
Pins 1 & 2 closed |
|
Floppy drive interface disabled |
J1 |
Pins 2 & 3 closed | |
| » |
Floppy drive interface primary address select |
J2 |
Pins 1 & 2 closed |
|
Floppy drive interface secondary address select |
J2 |
Pins 2 & 3 closed | |
| » |
IDE(AT) interface enabled |
J3 |
Pins 1 & 2 closed |
|
IDE(AT) interface disabled |
J3 |
Pins 2 & 3 closed | |
| » |
IDE(AT) primary address select |
J4 |
Pins 1 & 2 closed |
|
IDE(AT) secondary address select |
J4 |
Pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
JP10 |
Open |
|
SERIAL PORT 1 ADDRESS SELECTION | |||||||||
|
COM |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
S1/6 |
S1/7 |
S1/8 | |
| » |
COM1(3F8h) |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
COM2(2F8h) |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
COM3(3E8h) |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
COM4(2E8h) |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
COM5(3F0h) |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
COM6(3E0h) |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
COM7(2E0h) |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
COM8(260h) |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
SERIAL PORT 2 ADDRESS SELECTION | |||||||||
|
COM |
S2/1 |
S2/2 |
S2/3 |
S2/4 |
S2/5 |
S2/6 |
S2/7 |
S2/8 | |
|
COM1(3F8h) |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
COM2(2F8h) |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
COM3(3E8h) |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
COM4(2E8h) |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
COM5(3F0h) |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
COM6(3E0h) |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
COM7(2E0h) |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
COM8(260h) |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PARALLEL PORT 1 ADDRESS SELECTION | |||||||
|
LPT |
P1/1 |
P1/2 |
P1/3 |
P1/4 |
P1/5 |
P1/6 | |
| » |
LPT1(3Bch) |
Closed |
Open |
Open |
Open |
Open |
Open |
|
LPT2(378h) |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
LPT3(278h) |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
LPT4(268h) |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
LPT5(27Ch) |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
LPT6(26Ch) |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PARALLEL PORT 2 ADDRESS SELECTION | |||||||
|
LPT |
P2/1 |
P2/2 |
P2/3 |
P2/4 |
P2/5 |
P2/6 | |
|
LPT1(3Bch) |
Closed |
Open |
Open |
Open |
Open |
Open | |
| » |
LPT2(378h) |
Open |
Closed |
Open |
Open |
Open |
Open |
|
LPT3(278h) |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
LPT4(268h) |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
LPT5(27Ch) |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
LPT6(26Ch) |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
SERIAL PORT 1 INTERRUPT SELECTION | ||||||||||
|
IRQ |
S11/A |
S11/B |
S11/C |
S11/D |
S11/E |
S11/F |
S11/G |
S11/H |
S11/I | |
|
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
SERIAL PORT 2 INTERRUPT SELECTION | ||||||||||
|
IRQ |
S22/A |
S22/B |
S22/C |
S22/D |
S22/E |
S22/F |
S22/G |
S22/H |
S22/I | |
| » |
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PARALLEL PORT 1 INTERRUPT SELECTION | ||||||||||
|
IRQ |
P11/A |
P11/B |
P11/C |
P11/D |
P11/E |
P11/F |
P11/G |
P11/H |
P11/I | |
|
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
PARALLEL PORT 2 INTERRUPT SELECTION | ||||||||||
|
IRQ |
P22/A |
P22/B |
P22/C |
P22/D |
P22/E |
P22/F |
P22/G |
P22/H |
P22/I | |
|
IRQ3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
IRQ5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ7 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
DMA CHANNEL SELECTION | |||
|
Channel |
J5 |
J6 | |
|
0 |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
1 |
Pins 3 & 4 closed |
Pins 3 & 4 closed | |
| » |
3 |
Pins 5 & 6 closed |
Pins 5 & 6 closed |
