FUTURE DOMAIN CORPORATION

IDE-32000

Data Bus

32-bit VESA Local Bus

Card Size

Three-quarter length, half-height card

Hard Drives supported

Four EIDE drives

Floppy drives supported

Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB drives

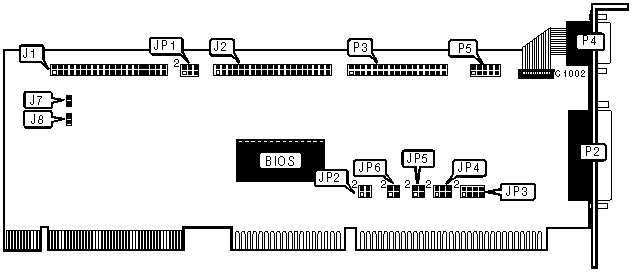

CONNECTIONS

Function

Location

Function

Location

40-pin primary IDE(AT) connector

J1

25-pin parallel port - external

P2

40-pin secondary IDE(AT) connector

J2

34-pin cable connector - floppy drive

P3

2-pin connector - drive active LED

J7

9-pin serial port 1 - external

P4

2-pin connector - drive active LED

J8

10-pin serial port 2 - internal

P5

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

JP1/pins 3 & 4

Unidentified

»

Primary IDE interface IRQ14 select

JP2/pins 1 & 2

Closed

»

Secondary IDE interface IRQ15 select

JP2/pins 3 & 4

Closed

»

Serial port 1 COM1 IRQ4 select

JP6/pins 1 & 2

Closed

»

Serial port 2 COM2 IRQ3 select

JP6/pins 3 & 4

Closed

DMA CHANNEL SELECTION

Channel

JP4



1

Pins 1 & 3, 4 & 6 closed



3

Pins 2 & 4, 3 & 5 closed

»

Disabled

Open

PRIMARY IDE CHANNEL SELECTION

Channel

JP1/pins 1 & 2

JP1/pins 5 & 6

»

IDE(AT) primary interface enabled

Closed

Open



IDE(AT) primary interface disabled

Closed

Closed

BIOS ADDRESS SELECTION

Address

JP3

»

C800-C9FFh

Pins 1 & 2, 3 & 4, 7 & 8 closed



CC00-CDFFh

Pins 1 & 2, 7 & 8 closed



D000-D1FFh

Pins 1 & 2, 3 & 4, 5 & 6 closed



D400-D5FFh

Pins 1 & 2, 5 & 6 closed



D800-D9FFh

Pins 1 & 2, 3 & 4 closed



DC00-DDFFh

Pins 1 & 2 closed



Disabled

Open

PARALLEL PORT INTERRUPT SELECTION

IRQ

JP5/pins 1 & 2

JP5/pins 3 & 4

»

IRQ7

Closed

Open



IRQ5

Open

Closed
