WESTERN DIGITAL CORPORATION
WDXT-140
Data bus: 8-bit, PC/XT
Size: Half-length, full-height card
Hard drives supported: One IDE (XT) interface drives
Floppy drives supported: None
Maximum heads/cyl.: 8 heads and 1024 cylinders
|

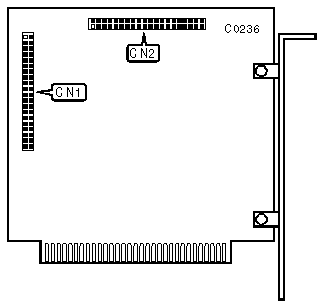

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE (XT) Interface control cable connector-internal drives 1 |
CN1 |
|
40-pin IDE (XT) Interface control cable connector-internal drives 2 |
CN2 |
|
Notes: There are no user configurable jumpers on the WDXT-140. | |
